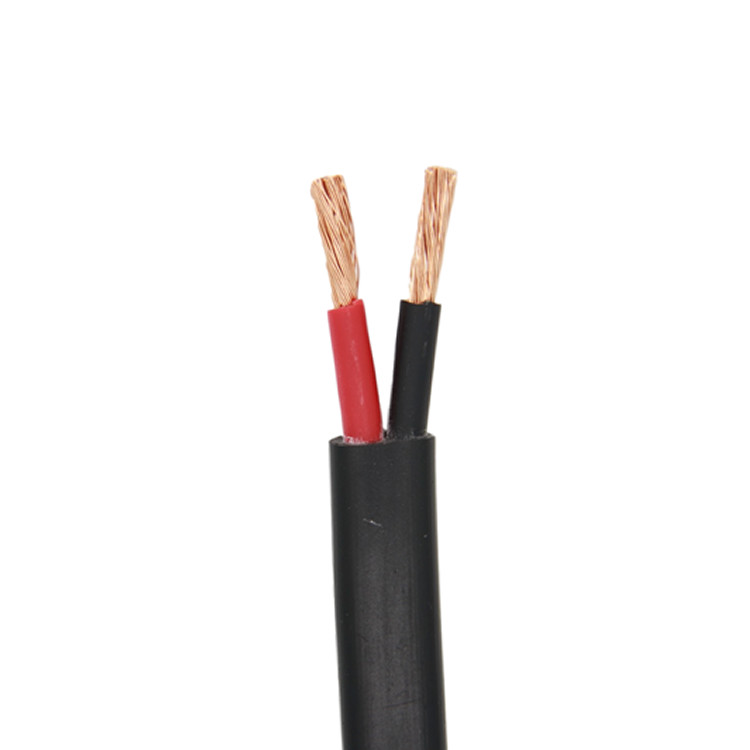

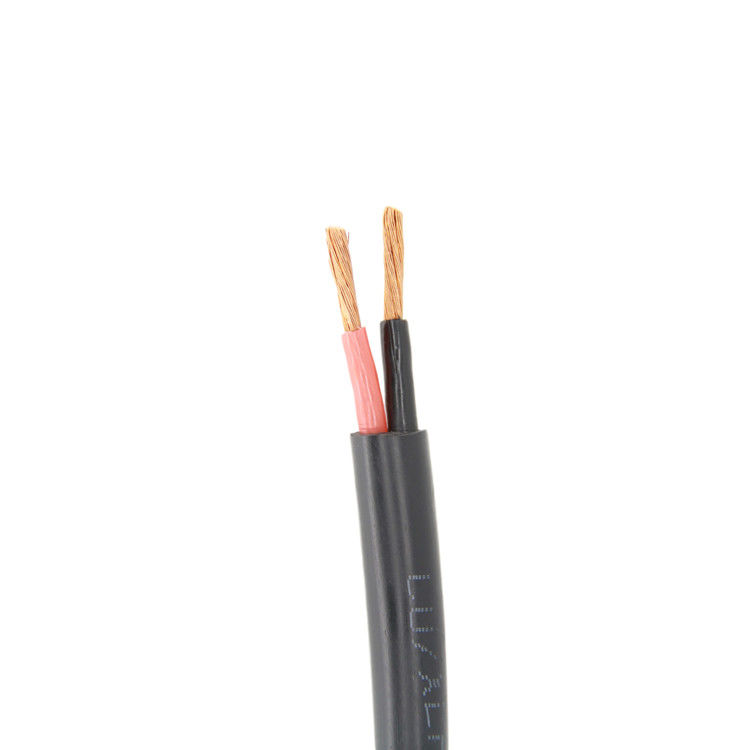

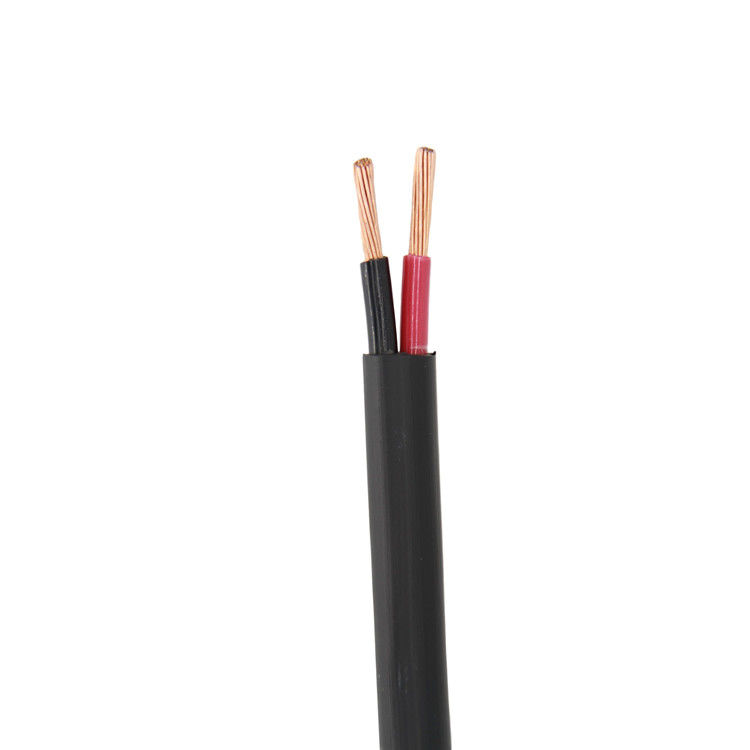

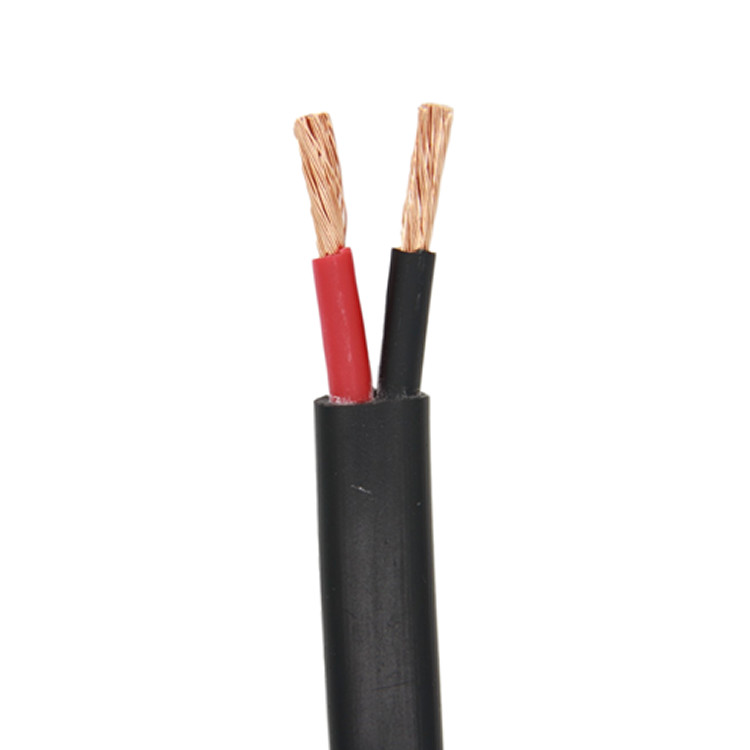

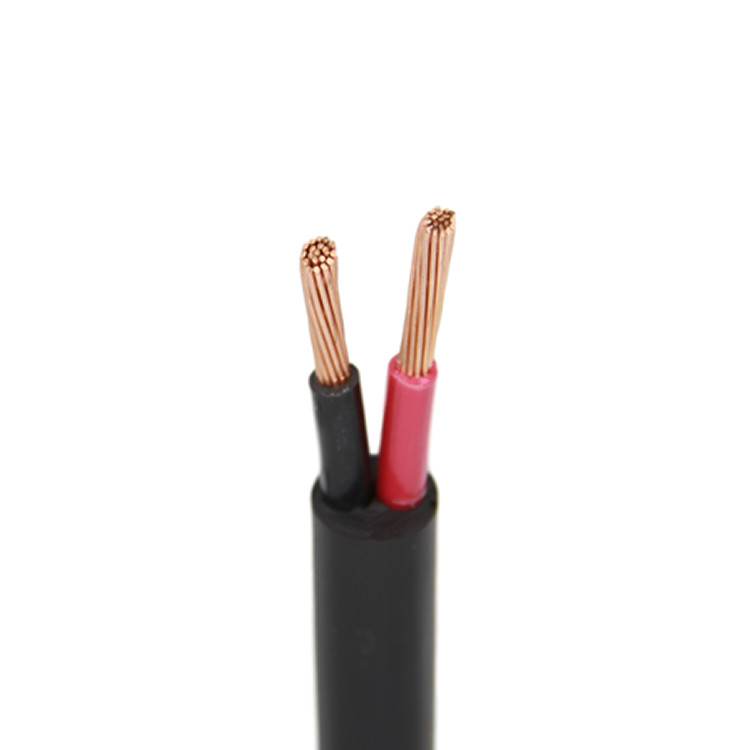

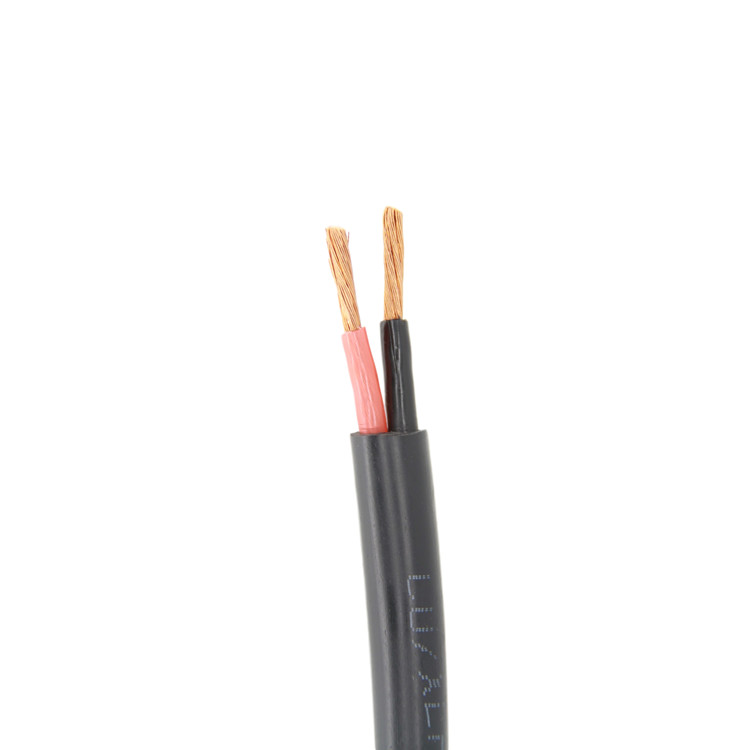

H05GGH2-F 500V Flat Standard Cable For Control Equipment

Minimum Order Quantity : 200meters Packaging Details : Iron-wooden drum
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T
Place of Origin: Henan, China Brand Name: CN CABLE
Certification: CE/ISO9001 Model Number: H05GGH2-F

Detail Information

Conductor Material: Copper Standard: BS EN 50525-2-11:2011, BS-6500
Working Voltage: 300/500 V Color: Black (other Colors On Request)
High Light:

Copper Conductor Standard Cable




BS 6500 Flat Standard Cable

Product Description

China Cable BS 6500 Standard H05GGH2-F 300/500V Flat Cable For Control Equipment

Product Description





These H05GGH2-F flat cables are used for measuring, controlling or regulation in control equipment for conveyors and control units. They are also used in Fixed installation and for flexible use when temporarily moved in medium mechanical condition. And can be used outdoors when protected and in dry or moist conditions indoor also.

Cable Construction

Conductor: Annealed copper conductor, class 5 flexible Conductor as per EN 60228

Optional : Tinned copper

Insulation: Cross-linked elastomeric Compound Type EI 3 as per EN 50363-1

Outer Sheath: Cross-linked elastomeric Compound Type EM 4 as per EN 50363-2-1




BS EN 50525-2-11:2011



Technical Characteristics:

Working voltage(U°/U) : 300/500 V
Conductor Operating Temperature : Max. 110ºC
Conductor Short-Circuit Temperature : Max. 250ºC
Temp. On Cable Surface : Max. +90ºC
Min Installation Temperature : 0ºC
Min Bending Radius : HD 516 Tab.7c
Current Carrying Capacities : HD 516, VDE 0298-4
Flame Retardant : EN/IEC 60332-1-2, DIN VDE 0482-332-1-2
Heat Resistant


Cable Parameter​


Min.-Max. (mm)
(kg / km)
(kg / km)
2×0,75 3,7×6,0 – 4,7×7,4 14.4 60





Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum.

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port.

H05GGH2-F 500V Flat Standard Cable For Control Equipment 0



Q1 Are you a manufacturer or a trade company?

A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.


Q2: What`s your export business type / customer groups?

A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !


Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.

A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.


Q4:What’s your MOQ?/ How long is your delivery time?

A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
