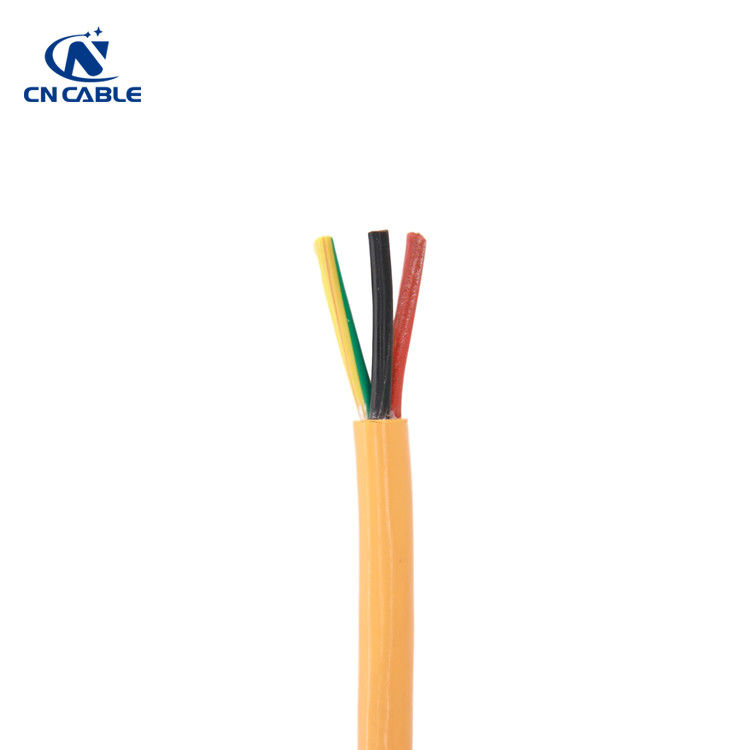

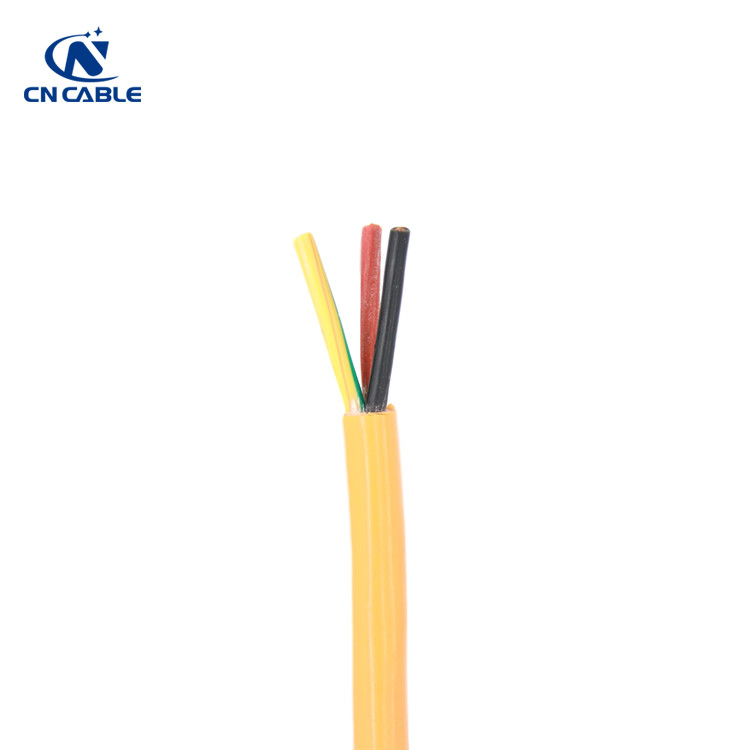

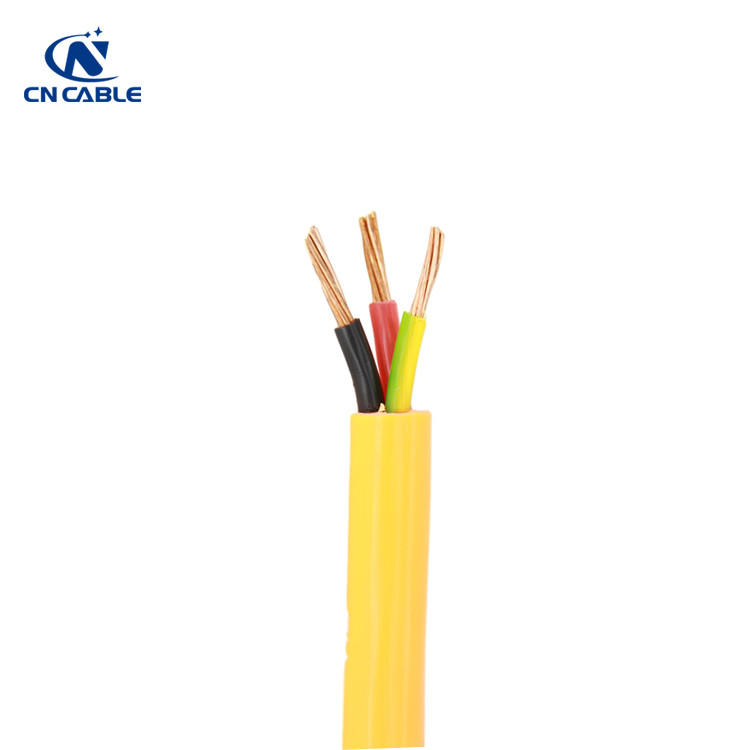

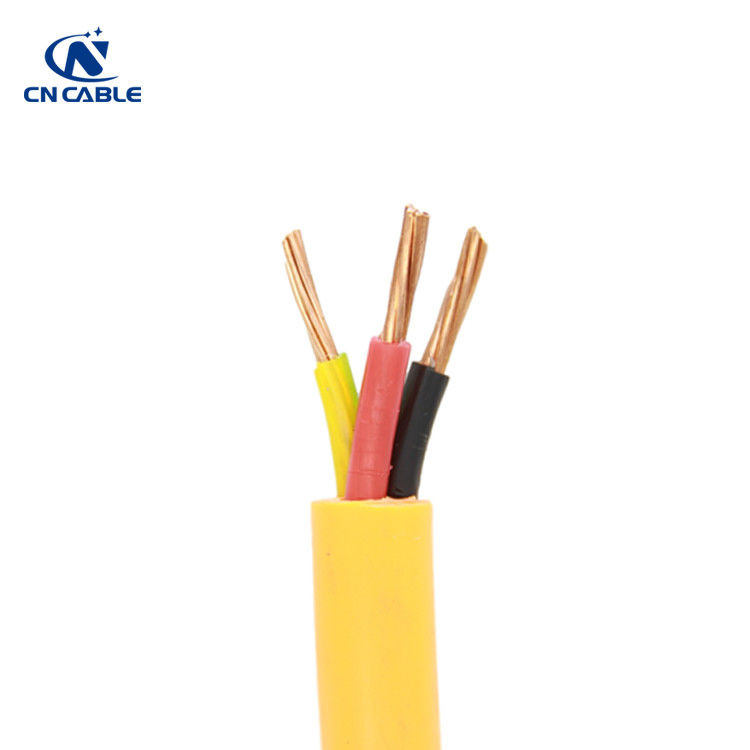

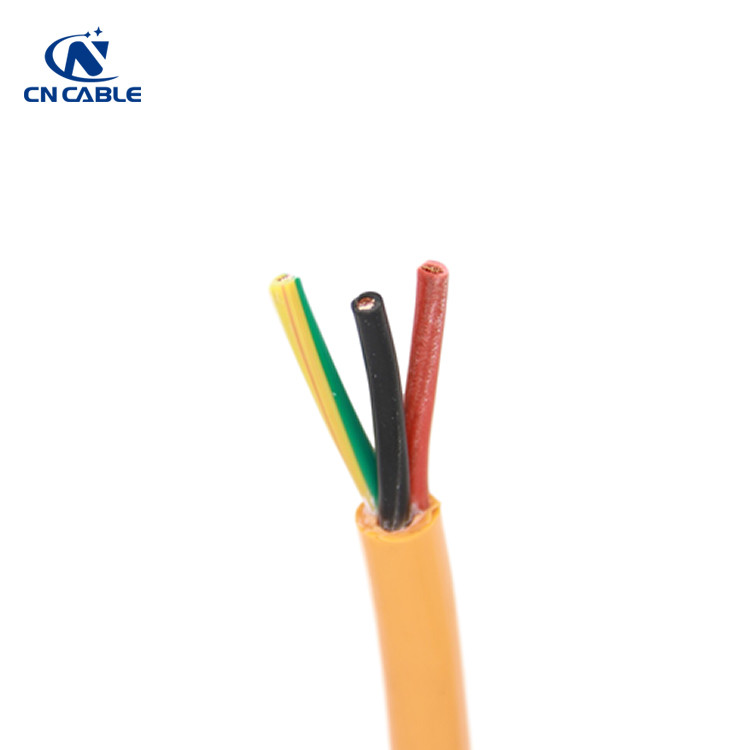

Tinned Copper Conductor 500V Silicone Multi Core Cable
Tinned Copper Conductor 500V Silicone Multi Core Cable Tinned Copper Conductor 500V Silicone Multi Core Cable Tinned Copper Conductor 500V Silicone Multi Core Cable Tinned Copper Conductor 500V Silicone Multi Core Cable Tinned Copper Conductor 500V Silicone Multi Core Cable
Contact Now

Tinned Copper Conductor 500V Silicone Multi Core Cable

Minimum Order Quantity : 200meters Packaging Details : Wooden drum. iron-wooden drum
Delivery Time : 20 days Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: IEC Model Number: H05SJ-K H05SS-K

Detail Information
Conductor: Tinned Copper Conductor Insulation: Silicone
Jacket: Silicone Color: Multi Colors Are Available
High Light:

500V Silicone Multi Core Cable

,

Tinned Copper Conductor Silicone Cable

,

Baking Equipment Multi Core Cable

Product Description

H05SS-F/H05SST-F Heavy Duty 300/500V Silicone Multi-Core Cable





APPLICATION



The harmonization approval on these cables makes them ideal for export to or use in European countries and markets.

These cables are mainly found in steel mills, foundries, glass factories, baking equipment, burners, heating and lighting systems. The cables have improved characteristics against mechanical stress and are ideal for permanent mechanically protected cable for lighting in industrial applications.







APPLICABLE STANDARD



<HAR> HD 22.15 S1

VDE-0282 Part 15







CABLE CONSTRUCTION



Conductor: Fine tinned copper strands
Insulation: Cross-linked silicone (EI 2) core insulation
Overall polyester fiber braid(only for H05SST-F)







TECHNICAL DATA



Working voltage 300/500V
Test voltage 2000V
Flexing bending radius 7.5×O
Static bending radius 4 x O
Temperature range -60 oC to +180 oC
Short circuit temperature +220 oC
Flame retardant IEC 60332 -1
Insulation resistance 200 MΩ x km
Halogen-free IEC 60754-1
Low smoke IEC 60754-2







PACKING MATERIAL



Coil, Box, Pallet, Drum







CABLE PARAMETER



AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
# x mm^2 mm mm mm kg/km kg/km
H05SS-F
18(24/32) 2×0.75 0.6 0.8 6.2 14.4 59.0
18(24/32) 3×0.75 0.6 0.9 6.8 21.6 71.0
18(24/32) 4×0.75 0.6 0.9 7.4 28.8 93.0
18(24/32) 5×0.75 0.6 1.0 8.9 36.0 113.0
17(32/32) 2×1.0 0.6 0.9 6.7 19.2 67.0
17(32/32) 3×1.0 0.6 0.9 7.1 29.0 86.0
17(32/32) 4×1.0 0.6 0.9 7.8 38.4 105.0
17(32/32) 5×1.0 0.6 1.0 8.9 48.0 129.0
16(30/30) 2×1.5 0.8 1.0 7.9 29.0 91.0
16(30/30) 3×1.5 0.8 1.0 8.4 43.0 110.0
16(30/30) 4×1.5 0.8 1.1 9.4 58.0 137.0
16(30/30) 5×1.5 0.8 1.1 11.0 72.0 165.0
14(50/30) 2×2.5 0.9 1.1 9.3 48.0 150.0
14(50/30) 3×2.5 0.9 1.1 9.9 72.0 170.0
14(50/30) 4×2.5 0.9 1.1 11.0 96.0 211.0
14(50/30) 5×2.5 0.9 1.1 13.3 120.0 255.0
12(56/28) 3×4.0 1.0 1.2 12.4 115.0 251.0
12(56/28) 4×4.0 1.0 1.3 13.8 154.0 330.0
10(84/28) 3×6.0 1.0 1.4 15.0 173.0 379.0
10(84/28) 4×6.0 1.0 1.5 16.6 230.0 494.0
H05SST-F
18(24/32) 2×0.75 0.6 0.8 7.2 14.4 63.0
18(24/32) 3×0.75 0.6 0.9 7.8 21.6 75.0
18(24/32) 4×0.75 0.6 0.9 8.4 28.8 99.0
18(24/32) 5×0.75 0.6 1.0 9.9 36.0 120.0
17(32/32) 2×1.0 0.6 0.9 7.7 19.2 71.0
17(32/32) 3×1.0 0.6 0.9 8.1 29.0 91.0
17(32/32) 4×1.0 0.6 0.9 8.8 38.4 111.0
17(32/32) 5×1.0 0.6 1.0 10.4 48.0 137.0
16(30/30) 2×1.5 0.8 1.0 8.9 29.0 97.0
16(30/30) 3×1.5 0.8 1.0 9.4 43.0 117.0
16(30/30) 4×1.5 0.8 1.1 10.4 58.0 145.0
16(30/30) 5×1.5 0.8 1.1 12.0 72.0 175.0
14(50/30) 2×2.5 0.9 1.1 10.3 48.0 159.0
14(50/30) 3×2.5 0.9 1.1 10.9 72.0 180.0
14(50/30) 4×2.5 0.9 1.1 12.0 96.0 224.0
14(50/30) 5×2.5 0.9 1.1 14.3 120.0 270.0
12(56/28) 3×4.0 1.0 1.2 13.4 115.0 266.0
12(56/28) 4×4.0 1.0 1.3 14.8 154.0 350.0
10(84/28) 3×6.0 1.0 1.4 16.0 173.0 402.0
10(84/28) 4×6.0 1.0 1.5 17.6 230.0 524.0
