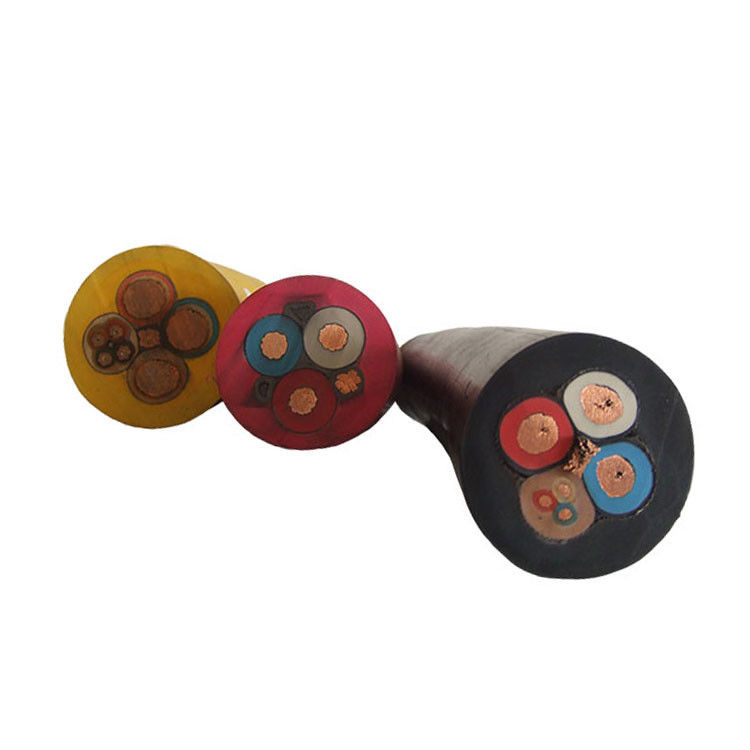

1KV Flexible Rubber Mining Power Cable For Underground

Minimum Order Quantity : 100m Packaging Details : Wooden Reel, Iron-wooden Reel, Steel Reel
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T
Supply Ability : 650 km per Month
Place of Origin: Henan, China Brand Name: CN CABLE
Certification: CE, ISO9001 Model Number: Mining Rubber Cable

Detail Information

Conductor Type: Stranded Application: Underground, Rubber Cable
Conductor Material: Copper Sheath Material: Crosslinking
Insulation Material: Silicone Rubber Rated Voltage: 600/1000V
High Light:

Flexible Rubber Mining Power Cable

,

1KV Mining Power Cable

,

600V Mining Power Cable

Product Description

0.6/1 kV Low Voltage Heavy Duty Flexible Rubber Mining Power Cable Mine Cable





Reeling Mining Rubber Cable Description

Application:

The cables are suitable for movable facilities such as movable cranes for container, lifts, movable bigger facilities, grab dredgers and the sites of machinery stress caused by mining on the ground/well bottoms.



Standard

Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2

Oil-resistant: EN 60811-2-1



Construction

Conductor :bare copper wire , flexible ,class5

Insulation: XLPE

Reinforce Core: High Tension Soft Textile Material

Inner sheath: Polyurethan , Yellow

Reinforce Layer: Braiding , High Tension Soft Textile Material

Outer Sheath: Polyurethan , Yellow

Core identification: colours acc. to VDE 0293 (HD308)



Technical data:

Rated voltage: 0.6/1KV

Max. Conductor operating Temperature: 90 °C

Permitted outer cable temperature, fixed, °C: -40 - +80 °C

Permitted outer cable temperature, moved, °C: -30 - +80 °C

Bending radius: fixed installation: 6 D , moving application 8D

Maximum tensile strength at the conductor: 25 N/mm²

Operating speed random, m/min.: 180 m/min.

Operating speed festoon, m/min.: 200 m/min.



Reeling Mining Rubber Cable Specifications

Part Name Outer diameter approx(mm) Net weight per 1000m(kg)
03X25 + 3G6 + 2X1.5 27 1250
03X35 + 3G6 + 2X1.5 29.3 1550
03X50 + 3G10 + 2X1.5 33.5 2300
03X70 + 3G16 + 2X1.5 38.5 3150
03X95 + 3G16 + 2X1.5 42.5 3850
03X120 + 3G25 + 2X1.5 46.5 5100
03X150 + 3G25 + 2X1.5 54 6100
03X185 + 3G35 + 2X1.5 58.5 7200
03X240 + 3G50 + 2X1.5 63.5 8950
03X25 + 3G6 + 2X2.5 27 1313
03X35 + 3G6 + 2X2.5 29.3 1628
03X50 + 3G10 + 2X2.5 33.5 2415
03X70 + 3G16 + 2X2.5 38.5 3308
03X95 + 3G16 + 2X2.5 42.5 4043
03X120 + 3G25 + 2X2.5 47 5540
03X150 + 3G25 + 2X2.5 54 6450
03X185 + 3G35 + 2X2.5 58.5 7560
03X240 + 3G50 + 2X2.5 63.5 9398
04G16 22 860





Reeling Mining Rubber Cable Packing



In Wooden Reel, Iron-wooden Reel, Steel Reel.
