15KV 133% TS Copper Special Cables Armor X Cable XLPE Insulation
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
|Minimum Order Quantity :||100m||Packaging Details :||Wooden Reel, Iron-wooden Reel, Steel Reel|
|Delivery Time :||1-4 weeks||Payment Terms :||L/C, T/T|
|Supply Ability :||650 km per Month|
|Place of Origin:||Henan, China||Brand Name:||CN CABLE|
|Certification:||CE, ISO9001||Model Number:||Rubber Cable|
|Material Shape:||Round Wire||Range Of Application:||Mine|
|Rated Voltage:||600/1000V||Test Voltage:||3500V|
|Screen:||No Screen||Transport Package:||500m Per Drum, 1000m Per Drum|
PUR Sheath Stranded Copper Cable,
Mining Stranded Copper Cable,
ISO9001 Braiding Stranded Copper Cable
PUR Sheath Power Reel Cable with Stranded Copper for for Mining Work
PUR Mining HF/FR
High quality cable for mining environment.

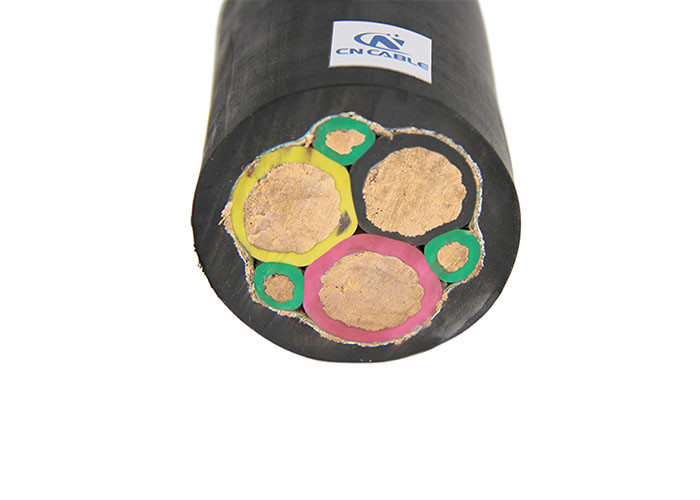

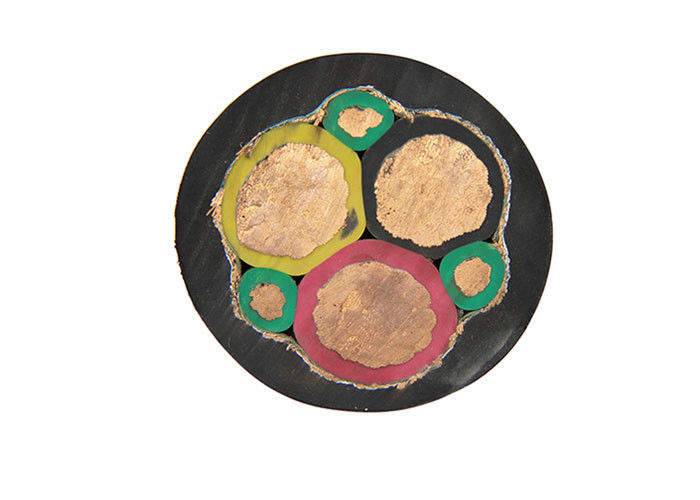

Reeling Mining Rubber Cable Description
The cables are suitable for movable facilities such as movable cranes for container, lifts, movable bigger facilities, grab dredgers and the sites of machinery stress caused by mining on the ground/well bottoms.
|Part Name||Outer diameter approx(mm)||Net weight per 1000m(kg)|
|03X25 + 3G6 + 2X1.5||27||1250|
|03X35 + 3G6 + 2X1.5||29.3||1550|
|03X50 + 3G10 + 2X1.5||33.5||2300|
|03X70 + 3G16 + 2X1.5||38.5||3150|
|03X95 + 3G16 + 2X1.5||42.5||3850|
|03X120 + 3G25 + 2X1.5||46.5||5100|
|03X150 + 3G25 + 2X1.5||54||6100|
|03X185 + 3G35 + 2X1.5||58.5||7200|
|03X240 + 3G50 + 2X1.5||63.5||8950|
|03X25 + 3G6 + 2X2.5||27||1313|
|03X35 + 3G6 + 2X2.5||29.3||1628|
|03X50 + 3G10 + 2X2.5||33.5||2415|
|03X70 + 3G16 + 2X2.5||38.5||3308|
|03X95 + 3G16 + 2X2.5||42.5||4043|
|03X120 + 3G25 + 2X2.5||47||5540|
|03X150 + 3G25 + 2X2.5||54||6450|
|03X185 + 3G35 + 2X2.5||58.5||7560|
|03X240 + 3G50 + 2X2.5||63.5||9398|
Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2
Oil-resistant: EN 60811-2-1
Conductor :bare copper wire , flexible ,class5
Reinforce Core: High Tension Soft Textile Material
Inner sheath: Polyurethan , Yellow
Reinforce Layer: Braiding , High Tension Soft Textile Material
Outer Sheath: Polyurethan , Yellow
Core identification: colours acc. to VDE 0293 (HD308)
Rated voltage: 0.6/1KV
Max. Conductor operating Temperature: 90 °C
Permitted outer cable temperature, fixed, °C: -40 - +80 °C
Permitted outer cable temperature, moved, °C: -30 - +80 °C
Bending radius: fixed installation: 6 D , moving application 8D
Maximum tensile strength at the conductor: 25 N/mm²
Operating speed random, m/min.: 180 m/min.
Operating speed festoon, m/min.: 200 m/min.
Reeling Mining Rubber Cable Packing
A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
