15KV 133% TS Copper Special Cables Armor X Cable XLPE Insulation
Contact Person : Andrea
Phone Number : 0086-371-60547601
whatsapp : +8613598873045
| Minimum Order Quantity : | 500m | Price : | $0.39 - $20.00/ Meter |
|---|---|---|---|
| Packaging Details : | Wooden Reel, Iron-wooden Reel, Steel Reel | Payment Terms : | L/C, T/T, Western Union |
| Place of Origin: | China | Brand Name: | CN Cable |
|---|---|---|---|
| Certification: | ISO9001, CE | Model Number: | Control cable |
|
Detail Information |
|||
| Standard: | GB/T9330, IEC60502 | Color: | According To Customer's Requirement |
|---|---|---|---|
| Conductor: | Solid Or Stranded Or Flexible Copper Conductor | Insulation: | PVC/XLPE/Rubber/Silicon |
| Jacket: | PVC/PE/Rubber | ||
| Highlight: | Multicore Control Silicone Rubber Cable,1.5mm2 Silicone Rubber Cable,XLPE Insulation Silicone Rubber Cable |
||
Product Description
Application
Suitable for the interconnection in controlling, protecting and measuring system.
Standard
GB/T9330 , IEC60502

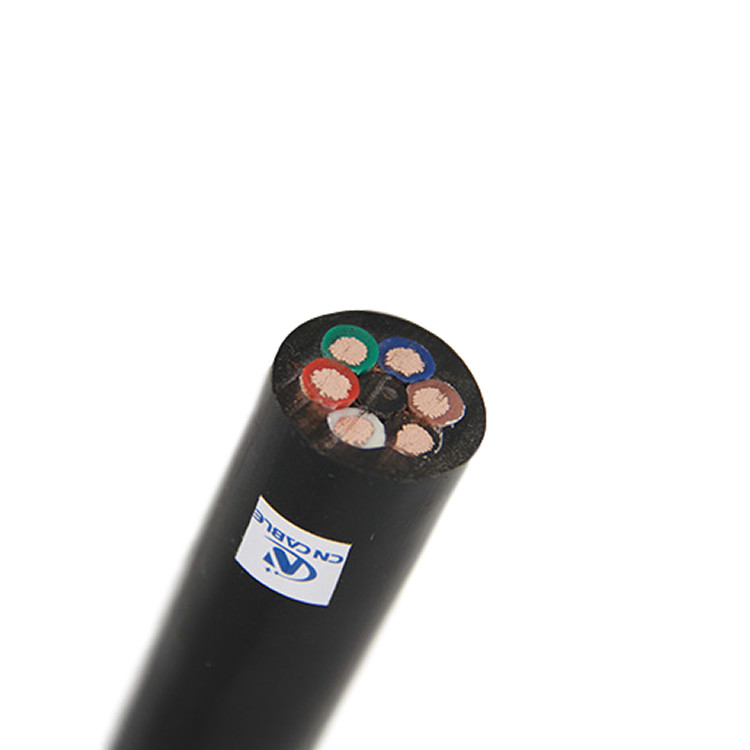

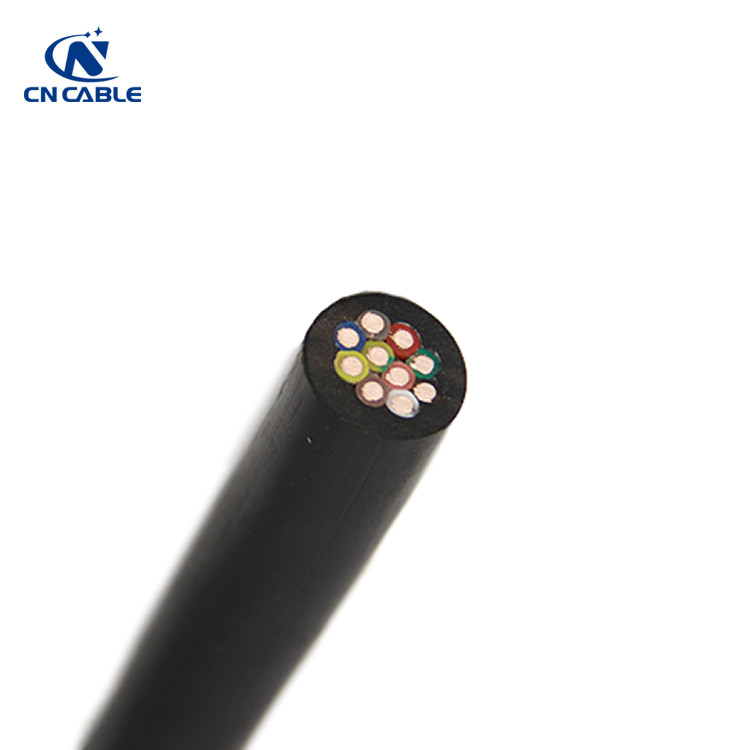

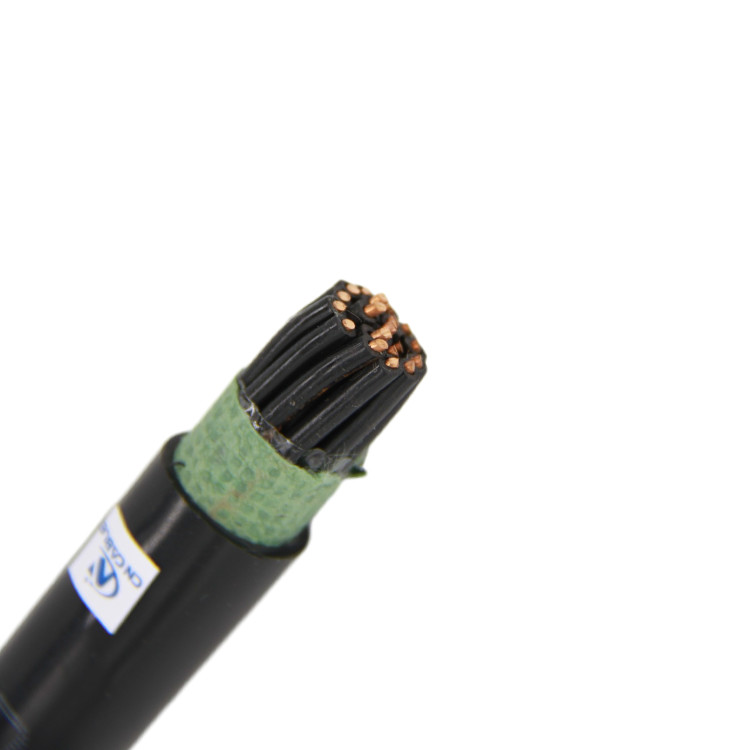

Construction
Conductor: Annealed or tinned copper wire, solid ,stranded or flexible as per IEC60228.
Insulation: PVC/XLPE/Rubber/Silicon

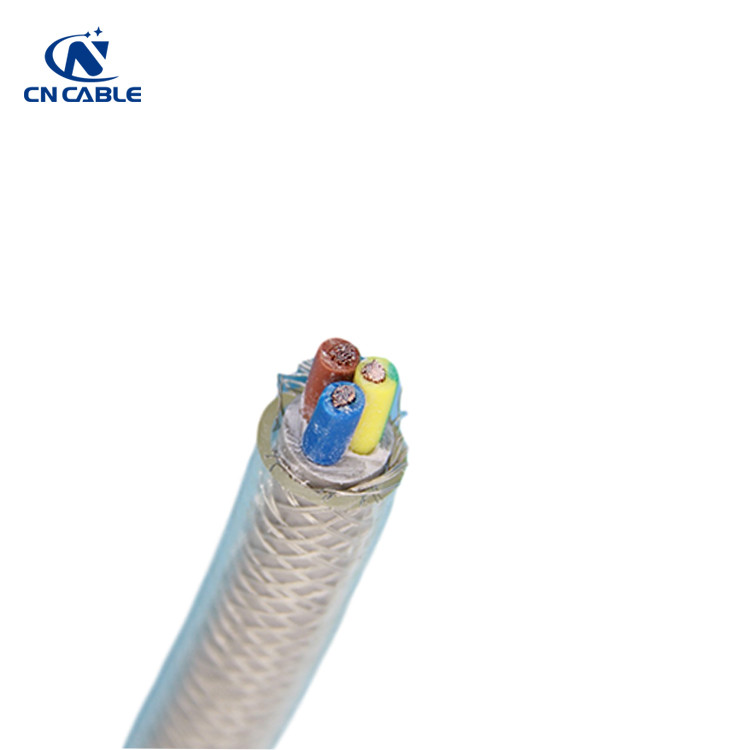

Metallic Shield (optional) : Copper tape/Annealed or tinned Copper wire braiding/Al-polyester tape

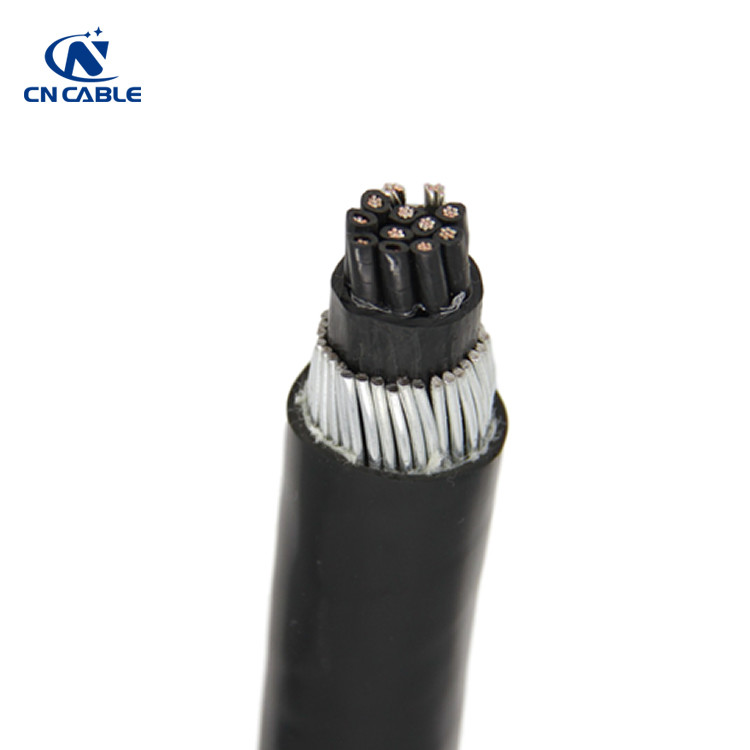

Armor (optional) : Steel tape or Steel wire
Outer sheath(jacket): PVC/PE/Rubber
Core identification: Color code or print number on insulation
Product date sheet
| Identified by insulation Material | ||||||
| Type | Characteristic | |||||
| PVC Insulated Control Cables | Operation temperature 70℃ | |||||
| XLPE Insulated Control Cables | Operation temperature 90℃ | |||||
| Rubber Insulated Control Cables | Operation temperature 70℃ | |||||
| Silicon Insulated Control Cables | Operation temperature 180℃ | |||||
| Copper conductor, PVC Insulation PVC Sheath ,Control Cable | ||||||
| Cable Size | Conductor | Nominal Insulation thickness | Nominal Jacket thickness | Approx. Overall Dia. | Approx. Cable Weight | |
| Core x Cross-section | Stranding No. | Approx. Stranded Dia. | ||||
| mm2 | pcs | mm | mm | mm | mm | kg/km |
| 2*1.5 | 7 | 1.50 | 0.7 | 1.2 | 8.7 | 86 |
| 3*1.5 | 7 | 1.50 | 0.7 | 1.2 | 9.2 | 110 |
| 4*1.5 | 7 | 1.50 | 0.7 | 1.2 | 10 | 136 |
| 5*1.5 | 7 | 1.50 | 0.7 | 1.2 | 10.8 | 162 |
| 6*1.5 | 7 | 1.50 | 0.7 | 1.2 | 11.7 | 189 |
| 7*1.5 | 7 | 1.50 | 0.7 | 1.2 | 11.7 | 210 |
| 8*1.5 | 7 | 1.50 | 0.7 | 1.2 | 13.1 | 239 |
| 10*1.5 | 7 | 1.50 | 0.7 | 1.5 | 15.4 | 313 |
| 12*1.5 | 7 | 1.50 | 0.7 | 1.5 | 15.8 | 358 |
| 14*1.5 | 7 | 1.50 | 0.7 | 1.5 | 16.6 | 407 |
| 16*1.5 | 7 | 1.50 | 0.7 | 1.5 | 17.5 | 456 |
| 19*1.5 | 7 | 1.50 | 0.7 | 1.5 | 18.4 | 526 |
| 24*1.5 | 7 | 1.50 | 0.7 | 1.7 | 21.8 | 674 |
| 27*1.5 | 7 | 1.50 | 0.7 | 1.7 | 22.3 | 742 |
| 30*1.5 | 7 | 1.50 | 0.7 | 1.7 | 23.1 | 813 |
| 37*1.5 | 7 | 1.50 | 0.7 | 1.7 | 24.9 | 977 |
| 44*1.5 | 7 | 1.50 | 0.7 | 1.7 | 27.9 | 1151 |
| 48*1.5 | 7 | 1.50 | 0.7 | 1.7 | 28.4 | 1241 |
| 52*1.5 | 7 | 2.0 | 0.7 | 1.7 | 29.2 | 1333 |
| 61*1.5 | 7 | 2.0 | 0.7 | 2 | 31.6 | 1582 |
| 2*2.5 | 7 | 2.0 | 0.8 | 1.2 | 10 | 128 |
| 3*2.5 | 7 | 2.0 | 0.8 | 1.2 | 10.6 | 164 |
| 4*2.5 | 7 | 2.0 | 0.8 | 1.2 | 11.5 | 203 |
| 5*2.5 | 7 | 2.0 | 0.8 | 1.2 | 12.6 | 246 |
| 6*2.5 | 7 | 2.0 | 0.8 | 1.5 | 14.3 | 309 |
| 7*2.5 | 7 | 2.0 | 0.8 | 1.5 | 14.3 | 325 |
| 8*2.5 | 7 | 2.0 | 0.8 | 1.5 | 15.9 | 391 |
| 10*2.5 | 7 | 2.0 | 0.8 | 1.5 | 18 | 463 |
| 12*2.5 | 7 | 2.0 | 0.8 | 1.5 | 18.6 | 533 |
| 14*2.5 | 7 | 2.0 | 0.8 | 1.5 | 19.5 | 597 |
| 16*2.5 | 7 | 2.0 | 0.8 | 1.7 | 20.9 | 690 |
| 19*2.5 | 7 | 2.0 | 0.8 | 1.7 | 22.1 | 800 |
| 24*2.5 | 7 | 2.0 | 0.8 | 1.7 | 25.7 | 997 |
| 27*2.5 | 7 | 2.0 | 0.8 | 1.7 | 26.3 | 1102 |
| 30*2.5 | 7 | 2.0 | 0.8 | 1.7 | 27.3 | 1211 |
| 37*2.5 | 7 | 2.0 | 0.8 | 1.7 | 29.4 | 1462 |
| 44*2.5 | 7 | 2.5 | 0.8 | 2 | 33.7 | 1772 |
| 48*2.5 | 7 | 2.5 | 0.8 | 2 | 34.3 | 1912 |
| 52*2.5 | 7 | 2.5 | 0.8 | 2 | 35.2 | 2054 |
| 61*2.5 | 7 | 2.5 | 0.8 | 2.2 | 37.8 | 2411 |
| 2*4 | 7 | 2.5 | 0.8 | 1.2 | 11.1 | 170 |
| 3*4 | 7 | 2.5 | 0.8 | 1.2 | 11.7 | 220 |
| 4*4 | 7 | 2.5 | 0.8 | 1.2 | 12.8 | 277 |
| 5*4 | 7 | 2.5 | 0.8 | 1.5 | 14.6 | 356 |
| 6*4 | 7 | 2.5 | 0.8 | 1.5 | 15.9 | 420 |
| 7*4 | 7 | 2.5 | 0.8 | 1.5 | 15.9 | 447 |
| 8*4 | 7 | 2.5 | 0.8 | 1.5 | 17.8 | 538 |
| 10*4 | 7 | 2.5 | 0.8 | 1.5 | 20.1 | 640 |
| 12*4 | 7 | 2.5 | 0.8 | 1.7 | 21.2 | 760 |
| 14*4 | 7 | 2.5 | 0.8 | 1.7 | 22.3 | 855 |
| 16*4 | 7 | 2.5 | 0.8 | 1.7 | 23.5 | 964 |
| 19*4 | 7 | 2.5 | 0.8 | 1.7 | 24.8 | 1122 |
| 24*4 | 7 | 2.5 | 0.8 | 1.7 | 29 | 1402 |
| 27*4 | 7 | 2.5 | 0.8 | 1.7 | 29.6 | 1555 |
| 30*4 | 7 | 2.55 | 0.8 | 2 | 31.3 | 1754 |
| 37*4 | 7 | 2.55 | 0.8 | 2 | 33.8 | 2123 |
| 44*4 | 7 | 2.55 | 0.8 | 2.2 | 38.4 | 2542 |
| 48*4 | 7 | 2.55 | 0.8 | 2.2 | 39.1 | 2747 |
| 52*4 | 7 | 2.55 | 0.8 | 2.2 | 40.2 | 2955 |
| 61*4 | 7 | 2.55 | 0.8 | 2.2 | 42.7 | 3425 |
