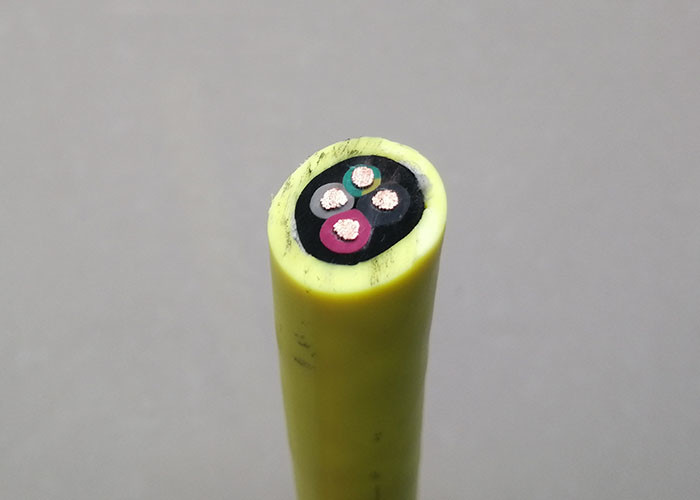

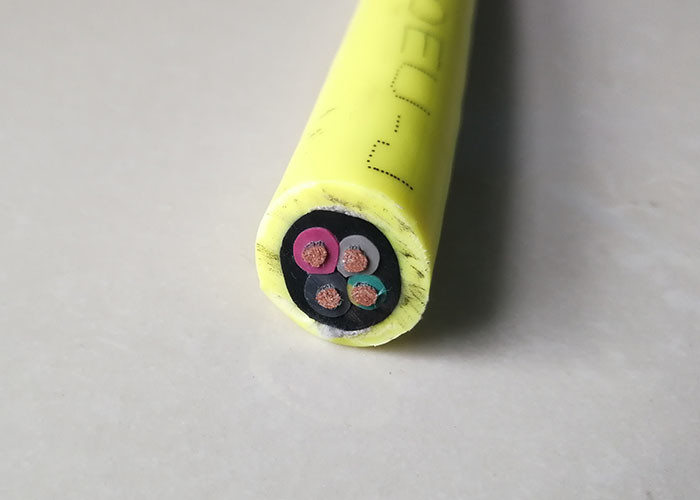

EPR Insulation Flexible Tinned Copper Cable 600V 5GM5 Sheath NSSHOEU-J

Minimum Order Quantity : 200 meters Packaging Details : Iron-wooden drum
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T, Western Union
Place of Origin: Henan, China Brand Name: CN CABLE GROUP
Certification: CE Model Number: NSSHOEU-J Cable

Detail Information

Conductors:: Flexible Tinned Copper Wire , (class 5) Insulation: EPR, Compound Type: 3GI3
Outer Sheath: Rubber Compound, Type 5GM5 Voltage: 600V/1000V
Outer Sheath Color: Yellow
High Light:

EPR Insulation Flexible Tinned Copper Cable


Flexible Tinned Copper Cable 600V


5GM5 Sheath Tinned Copper Cable

Product Description


600/1000V Heat Resistant EPR Insulation Flexible Tinned Copper Wire NSSHOEU-J Cable


Product Description

For flexible use and fixed installation in mine, in quarries, on construction sites and similar applications. It can bear heavy mechanical stresses, while it has good properties of flame retardant, oils and fats resistance, abrasion, cut, tear resistant.

They can be used permanently in waste water up to 40°C at a depth of max. 2000 m and in fresh water, salt water, industrial water, rainwater, oily water and sewage contaminated water.

The cables are suitable for indoor and outdoor applications.


Reference Standard
VDE 0250-812


Cable characters
Maximum submersing depth 2000 meters
Rated voltage 0.6/1 kV (600/1000V)
Max. permissible operating voltage AC 0.7/1.2 kV
Max. permissible operating voltage DC 0.9/1.8 kV
AC test voltage - main cores 3 kV (5 Min.)
Max. tensile load on the conductor 15 N/mm²
Working temperature fixed ≥80℃
Min. bending radius ≤ 4 x Cable overall diameter


Cable structure
Conductor: Flexible tinned copper wire , (class 5)
Insulation: EPR, Compound type: 3GI3
Inner sheath: Rubber compound, Basic material: EPR, Compound type: GM1B
Outer sheath: Rubber compound, type 5GM5
Core identification: Colored in gray, black, brown, blue, green/yellow up to 5 cores, light gray with black digits for more than 5 cores
Outer sheath Color: Yellow


Cable size Conductor wire dia.


Conductor dia.

Cable dia. Cable weight Max. D.C. Resistance at 20℃ Min. Bending radius
No.x mm2 mm mm mm kg/km Ω/km mm
3x50+25/3 Max. 0.41 9.39 41.7 3000 0.393 167
3x70+35/3 Max. 0.51 11.12 45.2 4000 0.277 181
3x95+50/3 Max. 0.51 12.95 51.9 5500 0.21 208
3x120+70/3 Max. 0.51 14.56 57.2 6800 0.164 229
3x150+70/3 Max. 0.51 16.27 60.4 8000 0.132 242
3x185+95/3 Max. 0.51 18.07 67.5 10000 0.108 270
3x240+120/3 Max. 0.51 20.59 75.4 12000 0.0817 302



rubber cables 06.jpg rubber cables 07.jpg rubber cables 09.jpg
