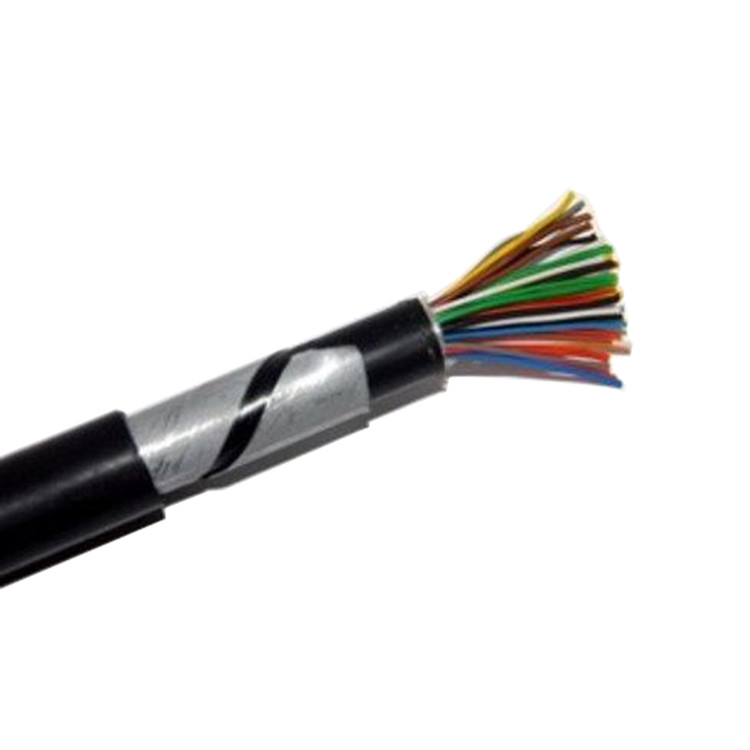

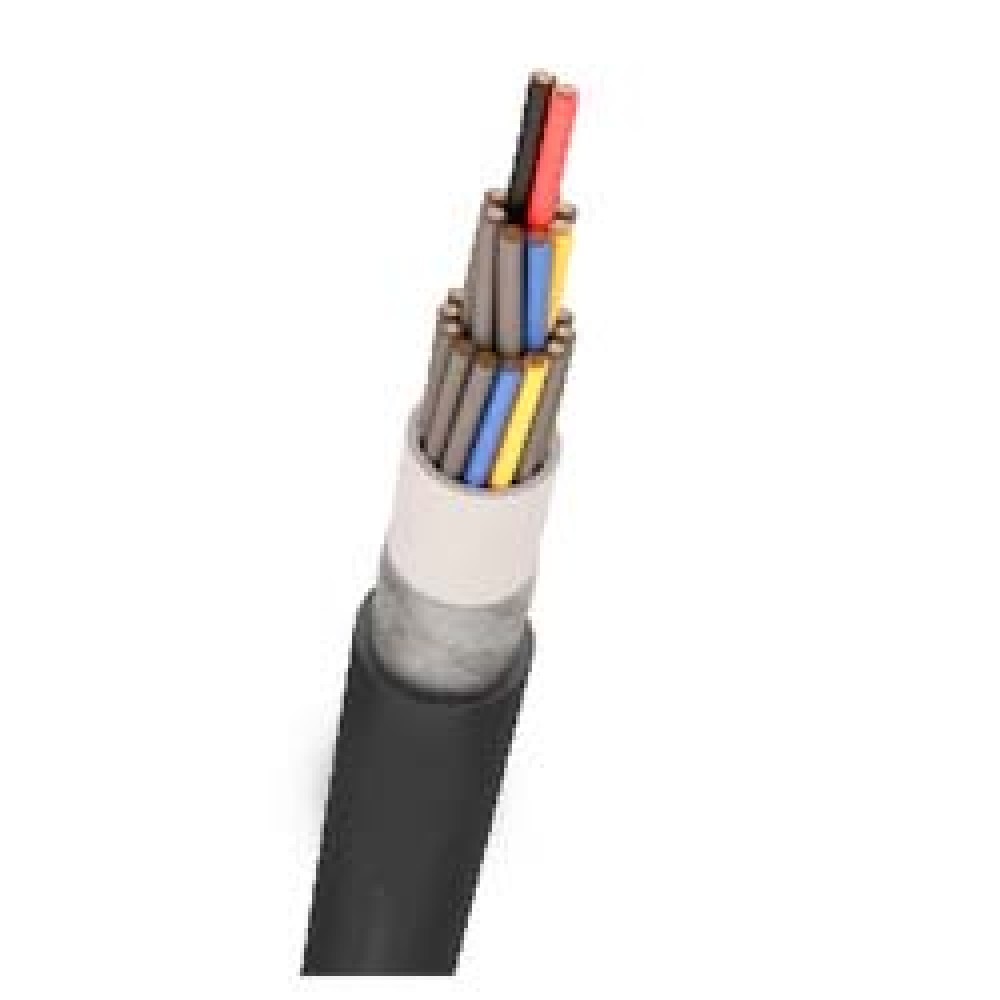

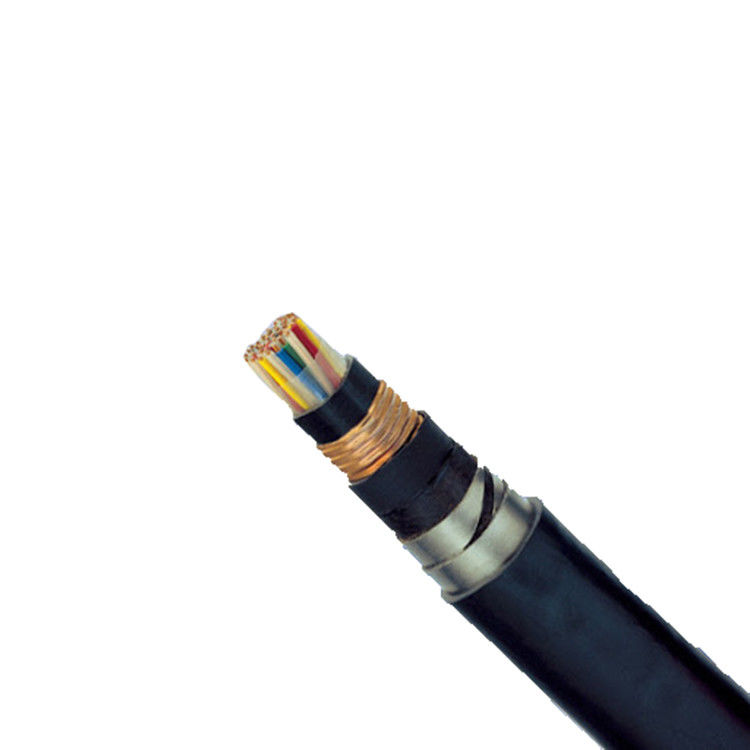

PE Sheath Multiconductor Railway Signaling Cables Armoured

Minimum Order Quantity : 200m Price : $1.00 - $20.00/ Meter
Packaging Details : Roll/Wooden Reel/Iron-wooden Reel/Steel Reel Delivery Time : 1-4 weeks
Payment Terms : L/C, T/T, Western Union
Place of Origin: Henan, China Brand Name: CN Cable Group
Certification: ISO9001, CE Model Number: PTYA23

Detail Information

Conductor: Solid Copper Insulation: Polyethylene
Armor: Steel Tape Outer Sheath: Black PE
High Light:

Multiconductor Railway Signaling Cables

,

PE Sheath Railway Signaling Cables

,

Armoured Railway Signaling Cables

Product Description



Steel Tape Armoured PE Sheath Multiconductor Railway Signaling Cables



Product Description


I. Application
Railway signal cables are suitable for control circuits of railway signals, audio signals or automatic signal devices with rated voltages of AC 500V or DC 1000V and below. Among them, comprehensive sheath and aluminum sheath railway signal cables have a certain shielding performance, which is suitable for laying in electrified sections or other areas with strong electrical interference.


II. Performance Characters
1.The ambient temperature of the cable is -40℃~+60℃.
2.The long-term working temperature of the cable conductor should not exceed +70℃.
3.Cable laying environment temperature: PVC outer sheathed cable should not be lower than 0℃; PE outer sheathed cable should not be lower than -20℃.
4.The allowable bending radius of the cable: non-armoured cables should not be less than 10 times the outer diameter of the cable; armored cables should not be less than 15 times the outer diameter of the cable.
5.The ideal shielding coefficient of the comprehensive sheathed railway signal cable is ≤0.8; the ideal shielding coefficient of the aluminum sheathed railway signal cable is ≤0.3

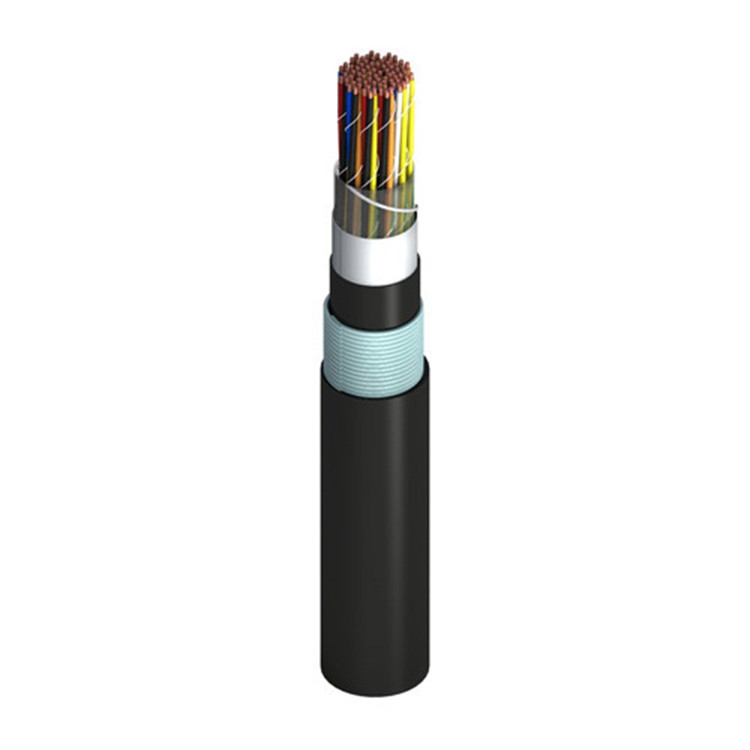

III. Cable structure
1. Solid copper conductor
2. Polyethylene Insulation, color code as per standard requirement
3. Comprehensive sheath
4. Inner sheath, black PVC/PE
5. Armor layer: Steel tape
6. Outer sheath: Black PE



IV. Detailed cable dimension and characters





PTYA23 CABLE







No. of core



Copper size



Max. DC Resistance at 20



Approx. Cable Dia.



Max. Working capacitance of twisted pair



Max. Star four-wire group working capacitance



Min. Insulation resistance



/



mm



Ω/km



mm



nF



nF



MΩ/km



4



1.0



23.5



14.3



70



50



3000



6



1.0



23.5



17.5



70



50



3000



8



1.0



23.5



25



70



50



3000



9



1.0



23.5



25



70



50



3000



12



1.0



23.5



27



70



50



3000



14



1.0



23.5



27



70



50



3000



16



1.0



23.5



29



70



50



3000



19



1.0



23.5



29



70



50



3000



21



1.0



23.5



29



70



50



3000



24



1.0



23.5



31



70



50



3000



28



1.0



23.5



31



70



50



3000



30



1.0



23.5



31



70



50



3000



33



1.0



23.5



31



70



50



3000



37



1.0



23.5



38



70



50



3000



42



1.0



23.5



38



70



50



3000



44



1.0



23.5



38



70



50



3000



48



1.0



23.5



38



70



50



3000



52



1.0



23.5



40



70



50



3000



56



1.0



23.5



42



70



50



3000



61



1.0



23.5



43



70



50



3000









Packing&Shipping


Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.



Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
