PVC Single Core 95mm2 Low Voltage Control Cable

Name: PVC Single Core 95mm2 Low Voltage Control Cable
Brand: CN CABLE
SKU: YVZ3V
Price: 1 USD
Availability: InStock
Rating: 4.9 (155 reviews)

Minimum Order Quantity :	1000m	Payment Terms :	L/C, T/T

Place of Origin:	HENAN	Brand Name:	CN CABLE
Model Number:	YVZ3V

Detail Information
Conductor:	Solid Or Stranded Copper	Insulation:	XLPE
Dia:	95mm2	Armoured:	Without Armoured
Tape:	Without Tape	Outer Sheath:	PVC
High Light:	95mm2 Low Voltage Control Cable , PVC Low Voltage Control Cable

Product Description

Standard: IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

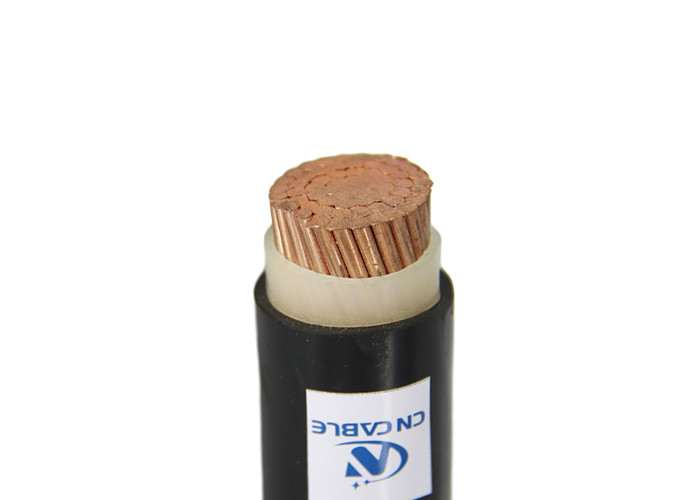

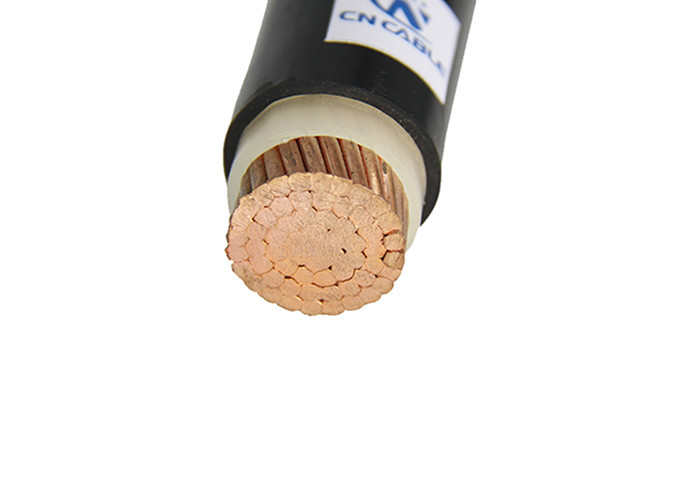

Structure

1. Solid or stranded copper conductor

2. XLPE insulation

3. Dia 95mm2

4. Without Armoured

5. Cable core number: 1Core

6. PVC outer sheath

Single(1) core, XLPE Insulated Power Cable
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-		Steel tape armored		Steel wire armored
	armored			armored		Steel tape armored		Steel wire armored
				CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
70	15	19.8	21.1	717	305	935	522	988	575
95	16.9	21.5	23.5	966	397	1198	629	1303	734
120	18.5	23.1	25.1	1201	483	1453	735	1567	848
