240 Sq Mm Xlpe Insulated Cws Swa Pvc Power Cable 33 Kv Cu Core

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: MV

Detail Information

Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Copper /Aluminum
Jacket: PVC Product Name: 33 Kv Cu Core 240 Sq Mm Xlpe Insulated Cws Swa Pvc Power Cable
Rated Voltage: 1-35KV Conductor: Al/Cu
Core: 1 Core / 3 Core Sheath: PVC/PE
Armour: SWA STA AWA ATA Color: Black/Red
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

insulated power cable


concentric neutral cable

Product Description

33 kv cu core 240 sq mm xlpe insulated cws swa pvc power cable

Product Description

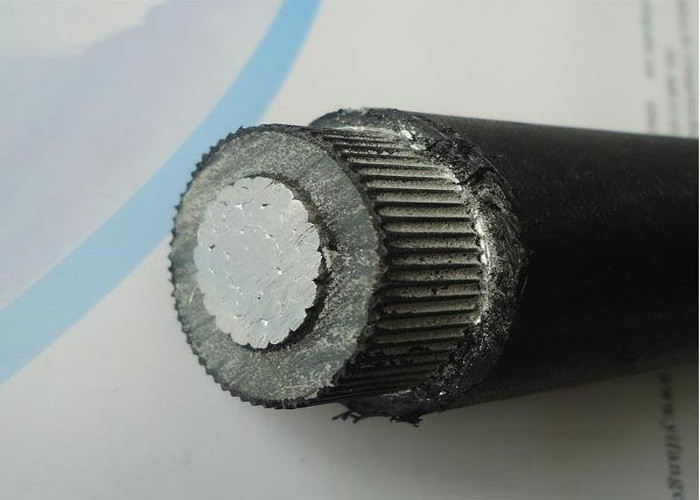

armoured cable.jpg



The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.


Applicable Standard:

We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.


Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃



Cable Structure:

Core Number: 1 Core / 3 Core

Conductor: Cu / AL

Insulation: XLPE / TRXLPE

Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape / AL Wire / STA / SWA

Outer sheath: PVC / PE / LDPE / LLDPE / LSHF

Product date sheet

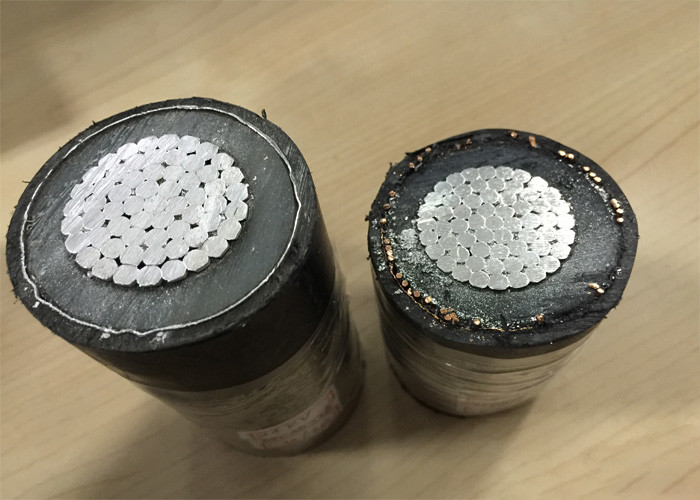

 single core cable.jpg



Rated Voltage XLPE/TRXLPE Insulation Nominal Thickness Metal Screen Aemor Dimension
Copper Tape Copper Wire Tape Wire
KV mm mm mm mm mm
3.6/6 2.5-3.2 0.06-0.12 Dia.Min.0.9mm, Wire No. According to Screen Size 0.2-0.5 0.8-5.0
6/10 3.4 0.06-0.12 0.2-0.5 0.8-5.0
8.7/15 4.5 0.06-0.12 0.2-0.5 0.8-5.0
12/20 5.5 0.06-0.12 0.2-0.5 0.8-5.0
18/30 8 0.06-0.12 0.2-0.5 0.8-5.0
