Aluminum 24kv XLPE Insulation Flexible Armored Cable

Minimum Order Quantity : 1000meters Packaging Details : wooden drum. iron-wooden drum
Delivery Time : 20 days Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: IEC Model Number: MV CABLE

Detail Information

Conductor: Aluminum Conductor Insulation: XLPE
Shield: Copper Wire Amour: Alumium Tape Amoured
Application: Underground Voltage: 24kv
High Light:

24kv Flexible Armored Cable

,

XLPE Insulation Flexible Armored Cable

Product Description

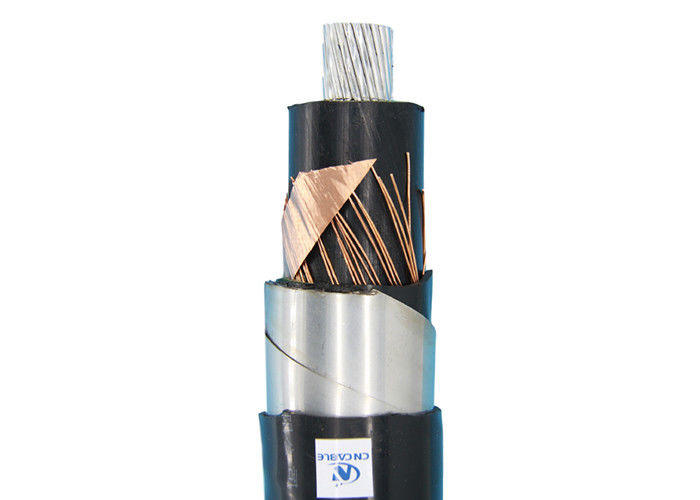

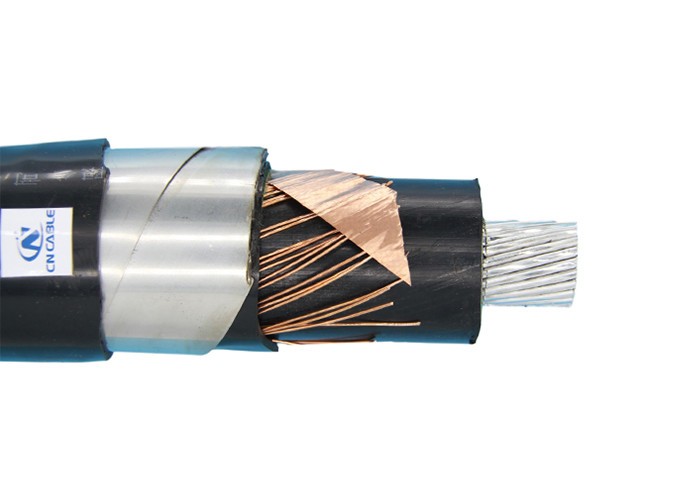

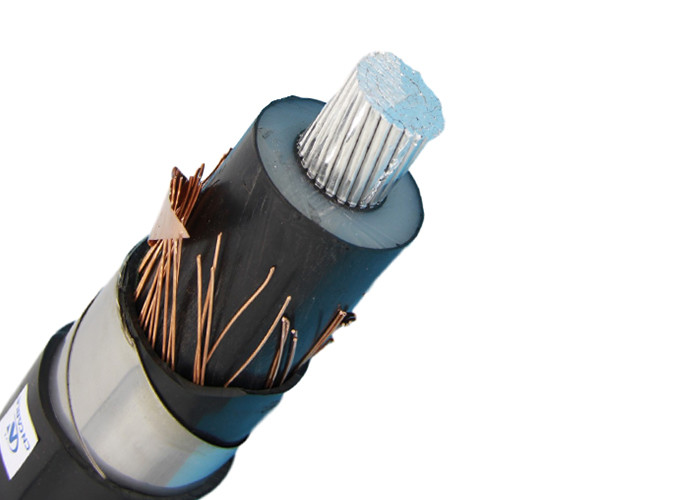

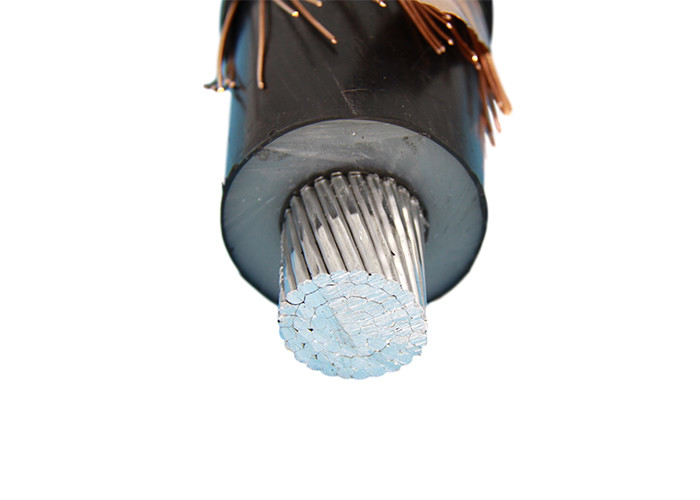

24KV (12/20KV) Single Core Copper Wire Shielded Aluminum Tape Armored Aluminum Underground Cable



APPLICATION:TThe cable is used for public power distribution network 1~35KV.



CONSTRUCTION
Conductor
Aluminum Conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Cores
Single core
Amour
Aluminum tape
Sheath
MDPE (Medium Density Polyethylene)

CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
24KV (12/20KV)
Sheath Colour
Black



Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience



24KV (12/20KV) Single Core , Aluminum Underground Cable
Size Insulation thickness Outer Sheath Thickness Approx. Cable Dia. Approx. Cable Weight
mm2 mm mm mm kg/km
150 5.5 2 33.2 1107
185 5.5 2 35 1253
240 5.5 2.1 37.6 1486
300 5.5 2.2 40 1728
400 5.5 2.3 43 2062
500 5.5 2.4 46.2 2432
630 5.5 2.5 50 2903
