Underground Amoured Middle Voltage Power Cable 10KV 120mm2
Underground Amoured Middle Voltage Power Cable 10KV 120mm2
Contact Now

Underground Amoured Middle Voltage Power Cable 10KV 120mm2

Minimum Order Quantity : 1000meters Packaging Details : wooden drum. iron-wooden drum
Delivery Time : 20 days Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: IEC Model Number: MV CABLE

Detail Information
Name: Middle Voltage Power Cable Insulation: XLPE
Screen: Copper Wires And Copper Tape Amour: Alumium Amoured
Sheath: Medium Density Polyethylene Voltage: 10KV
High Light:

10KV Middle Voltage Power Cable

,

120mm2 Middle Voltage Power Cable

,

10KV 120mm2 armoured power cable

Product Description

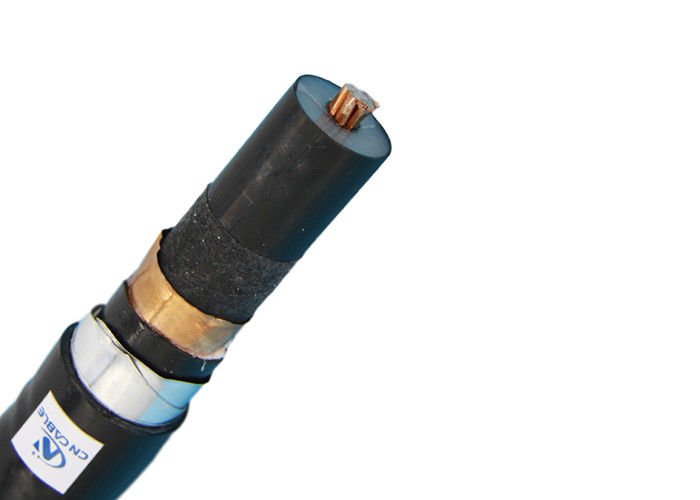

Underground Amoured Middle Voltage Power Cable 10KV 120mm2



CONSTRUCTION of Middle Voltage Power Cable


Conductor
AlConductor
Insulation
XLPE (Cross-Linked Polyethylene)
Screen
Copper Wires and Copper Tape
Amour
Aluminum wire
Sheath
MDPE (Medium Density Polyethylene)

CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
10KV (6/10KV)
Sheath Colour
Red



Middle Voltage Power Cable Parameters



Underground Amoured Middle Voltage Power Cable 10KV 120mm2
Size Insulation thickness Outer Sheath Thickness Approx. Cable Dia. Approx. Cable Weight
mm2 mm mm mm kg/km
95 3.4 1.8 25.9 691
120 3.4 1.8 27.3 792
150 3.4 1.8 28.7 906
185 3.4 1.9 30.7 1051
