Medium Voltage Three Core 120mm2 Insulated Power Cable

Minimum Order Quantity : 200 Meter/Me Packaging Details : wooden drum. iron-wooden drum
Place of Origin: Henan, China (Mainland) Brand Name: CN
Certification: IEC Model Number: MV

Detail Information

Insulation Material: XLPE Voltage: Medium Voltage
Application: Underground Conductor Material: Copper
Jacket: PVC Cores: 3 Cores
Rated Voltage: 1-35KV Conductor: Al/Cu
Sheath: PVC/PE Armour: SWA STA AWA ATA
Color: Black/Red Certificate: ISO9001/ISO14001
Standard: IEC60502-2, BS 6622, NFC 33226, Etc. Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

Three Core Insulated Power Cable

,

120mm2 Insulated Power Cable

Product Description

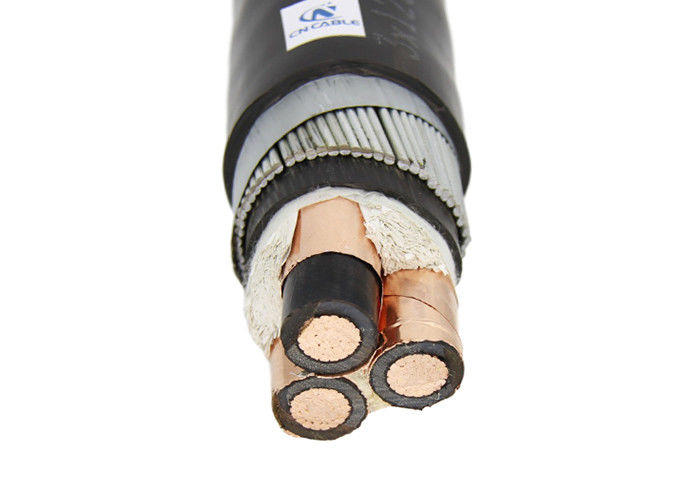

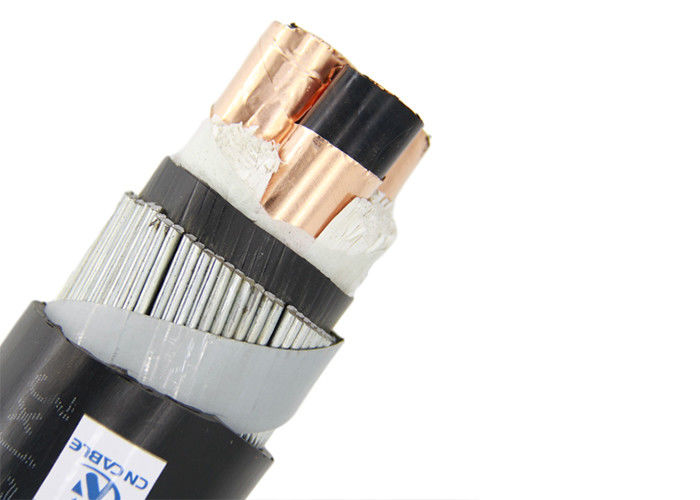

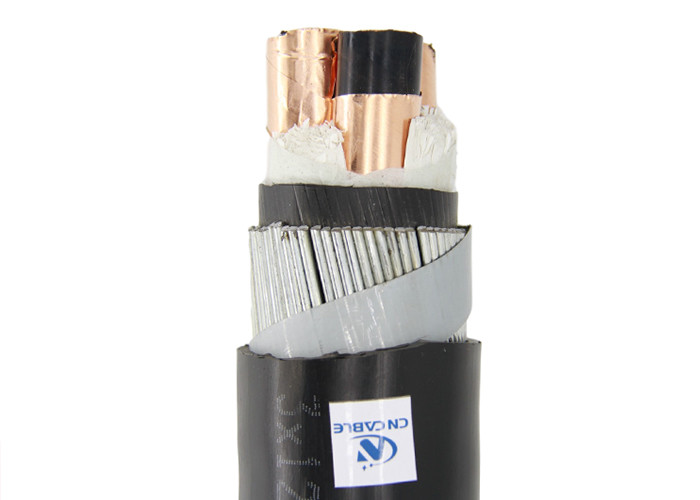

33KV, 36KV (18/30KV) Three Core 120mm2 Steel Wire Armoured Twisted Copper Underground Cable

Product Description





Application:

The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.



Applicable Standard:

We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.



Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃





Cable Structure:

Core Number: 1 Core / 3 Core

Conductor: Cu / AL

Insulation: XLPE / TRXLPE

Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape / AL Wire / STA / SWA

Outer sheath: PVC / PE / LDPE / LLDPE / LSHF

Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales




Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience



Product date sheet



33KV, 36KV (18/30KV) Three Core ,Twisted Copper Underground Cable
Size Insulation thickness Outer Sheath Thickness Approx. Cable Dia. Approx. Cable Weight
mm2 mm mm mm kg/km
25 8 1.9 64.6 2215
35 8 1.9 66.8 2412
50 8 2 69.8 2702
70 8 2 73.5 3058
95 8 2.1 77.5 3488
120 8 2.1 80.6 3857
150 8 2.2 84 4296
185 8 2.2 87.9 4788
240 8 2.3 93.5 5558





Rated Voltage XLPE/TRXLPE Insulation Nominal Thickness Metal Screen Aemor Dimension
Copper Tape Copper Wire Tape Wire
KV mm mm mm mm mm
3.6/6 2.5-3.2 0.06-0.12 Dia.Min.0.9mm, Wire No. According to Screen Size 0.2-0.5 0.8-5.0
6/10 3.4 0.06-0.12 0.2-0.5 0.8-5.0
8.7/15 4.5 0.06-0.12 0.2-0.5 0.8-5.0
12/20 5.5 0.06-0.12 0.2-0.5 0.8-5.0
18/30 8 0.06-0.12 0.2-0.5 0.8-5.0







Packaging & Shipping

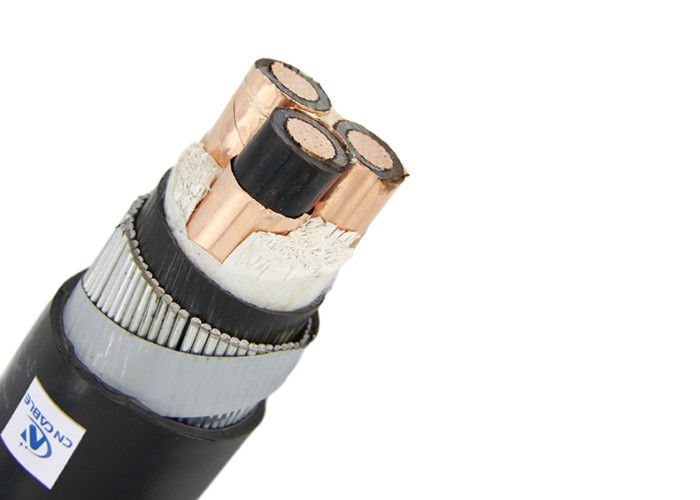

Medium Voltage Three Core 120mm2 Insulated Power Cable 0

Company Information



lv-power-cable_19

CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.



The company has passed Quality Management System ISO 9001:2015 and ISO 14001:2015, owned CE certificate and IEC certificate, etc. Advanced production technology and production equipments are also adopted .Some advanced producing and testing equipments are imported from Switzerland, Finland, Germany, the United States and other countries. For example, CCV cross-linked production line from Finland, and VCV cross-linked production line from German Troester, etc.



There are more than 300 workers in the factory; most of them have rich experiences in the field of cable manufacturing, engineering technology, and enterprise management. More than 40 persons are of senior professional and technical personnel, who are the upgraded technology experts and academic technology leaders. Design and production of all of our products are strictly according to the relative standards, such as ASTM, Australian standard, BS, CSA, CCITT, DIN,GB, IEC, JIS, NFC, UL, etc. Our products have been exported to more than 80 countries and regions. Such as Australia, Bangladesh, Brazil, Canada, Chile, Congo, Dominican, Ghana, Indonesia, Iran, Kenya, Nigeria, Peru, Philippines, Rwanda, Saudi Arab, South Africa, Sudan, Togo, Uganda, US, UK, Zambia.

CCA_15

FAQ





Medium Voltage Three Core 120mm2 Insulated Power Cable 3


Looking forward to cooperating with you.
