5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Conductor: | Aluminum Conductor | Insulation: | XLPE |
---|---|---|---|
Cores: | 1 Core | Amour: | Alumium Tape Amoured |
Sheath: | Medium Density Polyethylene | Color: | Black |
High Light: | Single Core Aluminum Armored Cable,50mm Aluminum Armored Cable |
Product Description

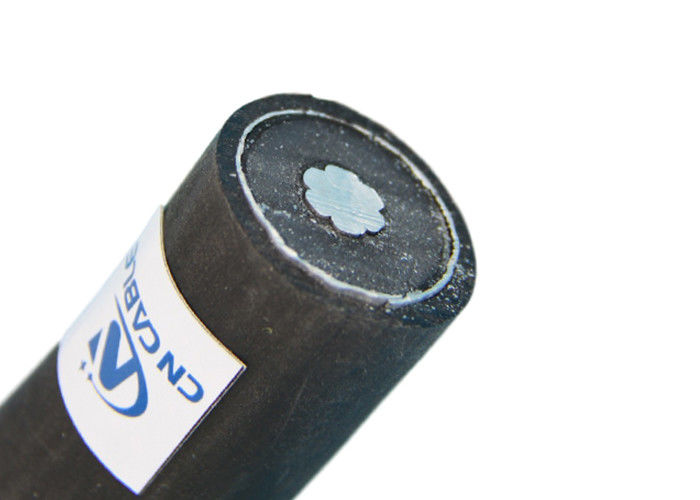

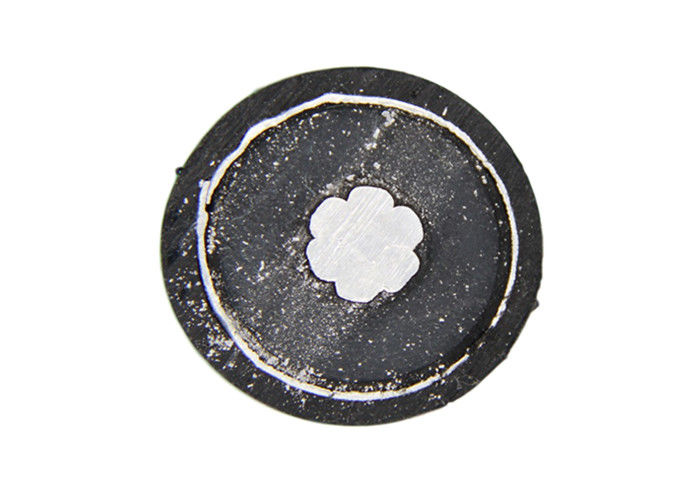

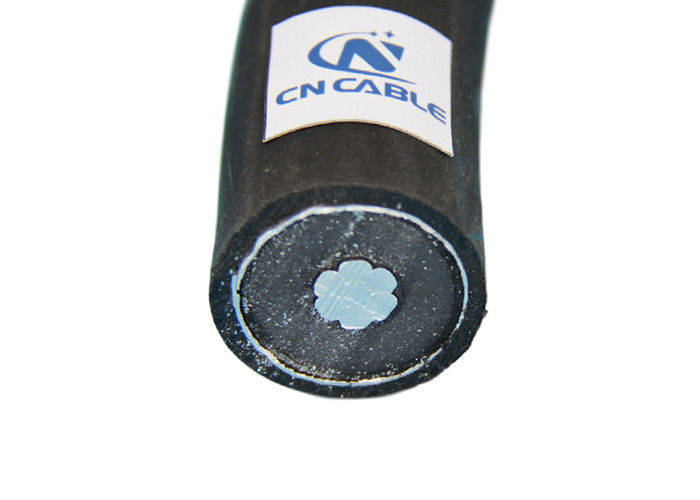

15KV (8.7/15KV) Single Core 50mm MV UG CABLE NFC 33229 Aluminum Underground Cable
APPLICATION:The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
CONSTRUCTION
Conductor
Aluminum Conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Cores
Single core
Amour
Aluminum tape
Sheath
MDPE (Medium Density Polyethylene)
CHARACTERISTICS
Voltage Rating (Uo/U)(Um)
15KV (8.7/15KV)
Sheath Colour
Black
Advantage
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales
15KV (8.7/15KV) Single Core ,Aluminum Underground Cable | ||||
Size | Insulation thickness | Outer Sheath Thickness | Approx. Cable Dia. | Approx. Cable Weight |
mm2 | mm | mm | mm | kg/km |
35 | 4.5 | 1.8 | 23.4 | 486 |
50 | 4.5 | 1.8 | 24.6 | 559 |
70 | 4.5 | 1.8 | 26.3 | 657 |
95 | 4.5 | 1.8 | 28 | 769 |
