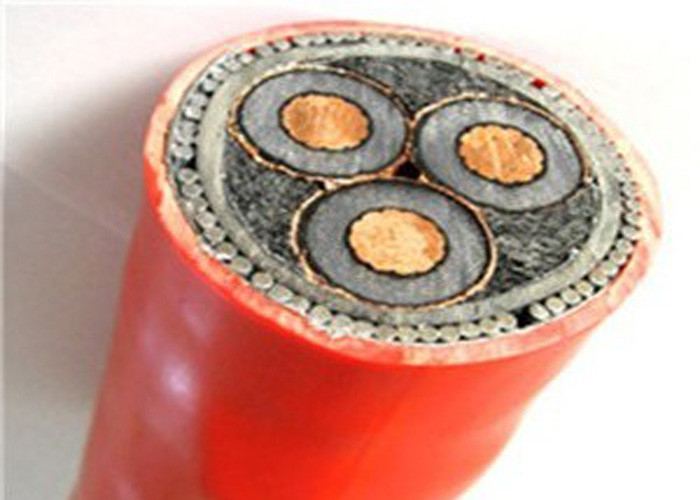

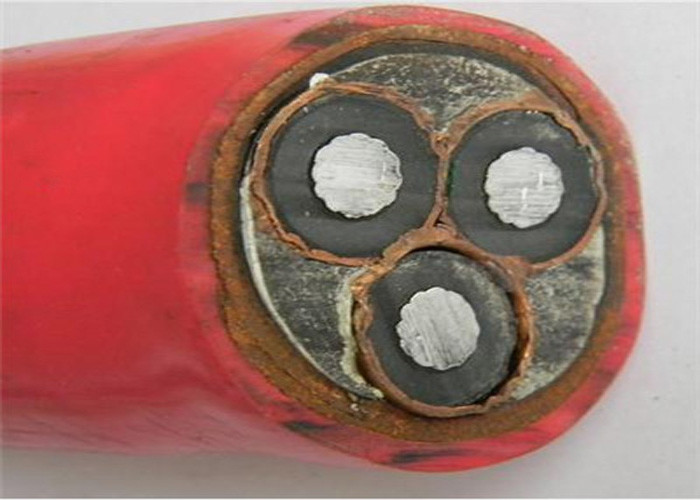

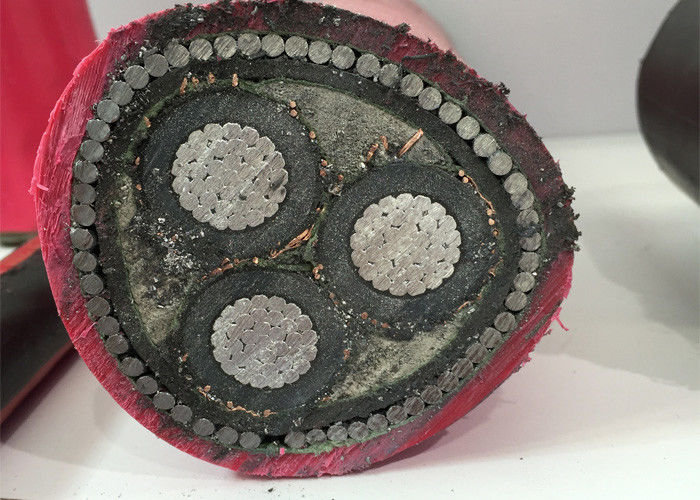

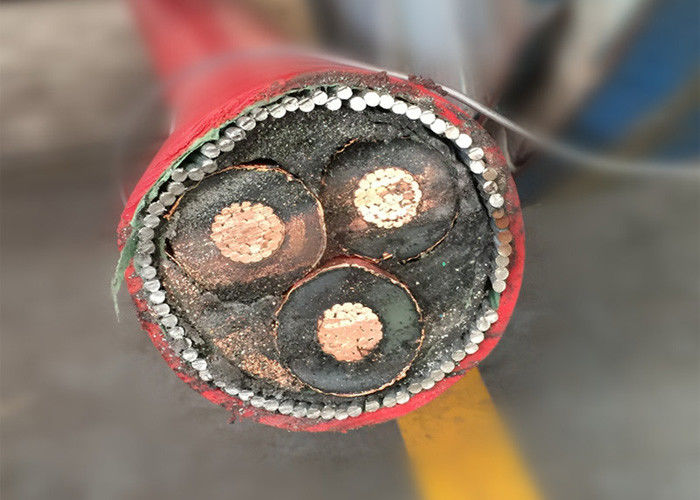

5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
|Insulation Material:||XLPE||Type:||Medium Voltage|
|Application:||Underground||Conductor Material:||Copper Or Almunim|
|Jacket:||PVC||Product Name:||MV Copper Conductor Steel Armoured Electric Power Cable|
|Core:||1 Core / 3 Core||Sheath:||PVC/PE|
|Armour:||SWA STA AWA ATA||Color:||Black/Red|
|Certificate:||ISO9001/ISO14001||Standard:||IEC60502-2, BS 6622, NFC 33226, Etc.|
|Package:||Wooden Reel, Iron-wooden Reel, Steel Reel|
medium voltage power cables,
concentric neutral cable
The product is used in power transmission and distribution line at voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.
Rated Voltage: 1KV to 35KV
Cross-section area: up to 1000 .
Conductor long-time operating temperature: 90℃
Short circuit conductor highest temperature: 250℃
Core Number: 1 Core / 3 Core
Conductor: Cu / AL
Insulation: XLPE / TRXLPE
Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen
Armor type: AL Tape / AL Wire / STA / SWA
Outer sheath: PVC / PE / LDPE / LLDPE / LSHF
|Conductor Size||Stranding No. (Compacted Round)||Conductor Dia.||Max.D.C.resistance at 20℃|
Insulation, Metal Screen, Armor Dimension
