Copper Or Aliminum Conductor PVC Insulated Cable 0.6/1KV Pvc Armoured Cable

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Model Number: PVC Insulated Cable

Detail Information

Insulation: PVC Type: Low Voltage
Conductor: Copper / Aliminum Outer Sheath: PVC
Certificate: ISO9001/ISO14001 Standard: VDE-0276 , IEC 60502
Product Name: 0.6/1KV PVC Wire
High Light:

pvc insulated power cable


pvc jacket cable

Product Description

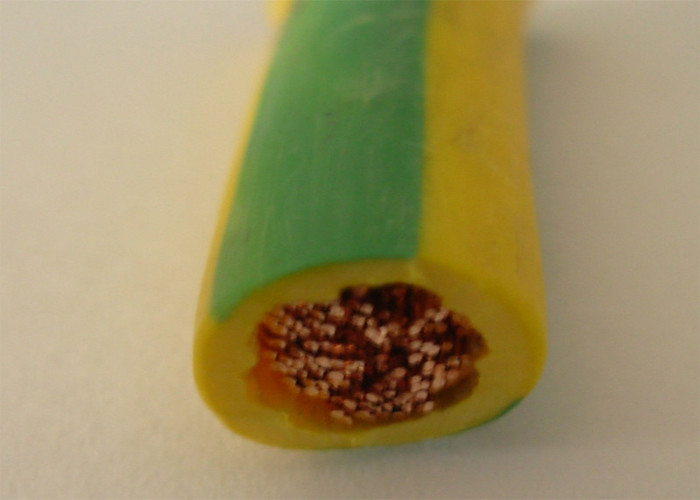

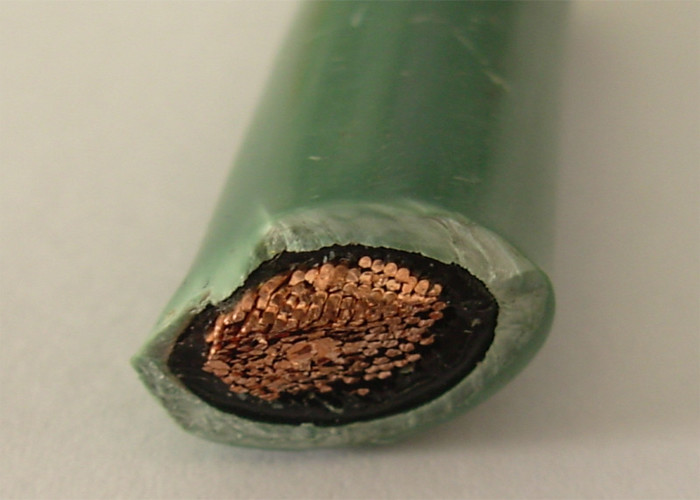

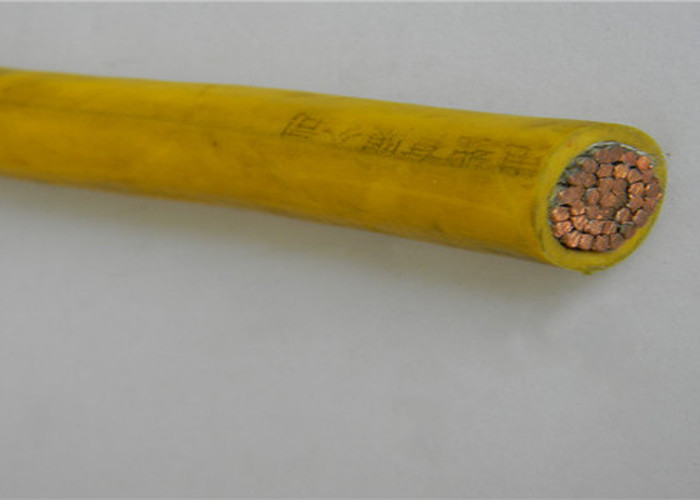

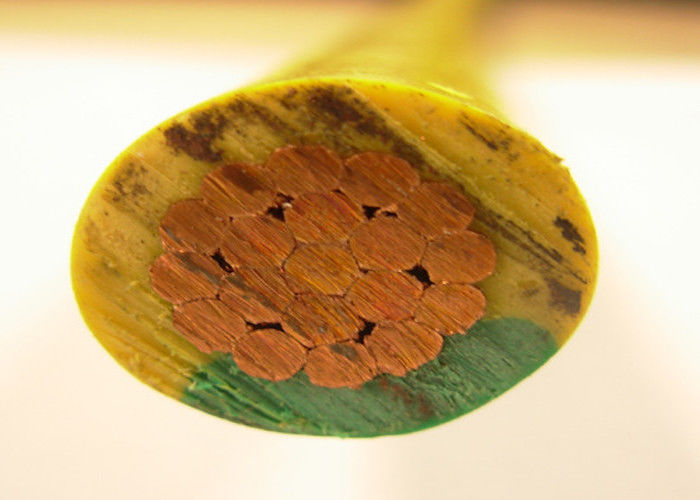

Copper Or Aliminum Conductor PVC Insulated Cable 0.6/1KV Pvc Armoured Cable

Product Description

 low voltage power cable.jpg



Low voltage pvc insulated electric wire has been widely used in our country with the advantages of excellent electric properties, The products 450/750v electric wire copper/aluminum PVC insulated electric cables belong to the series of laying electric wires,which is mainly suitable for laying at the fixed places, It is widely used as connectors of drive,lighting ,electronic equipments ,Instrument and telecommunication equipments with rated voltage 450/750v or below , Part of plastic wires are used at the equipment with A.C rated votage 300/300v or below.


Applicable Standard:

ASTM / ICEA S-76-474 , IEC 60502 ,DIN, NFC 33-209 , BS 7870 GB/T 12527 etc



Copper Wire Conductor: Copper/Aluminum

Insulation: PVC

Apply voltage: 300/500V 450/750V

Ambient Temperature: Above 0°C

Operation temperature: For PVC insulated wire, Operating temperature should not exceed 70°C except for Type 08.




Product date sheet



Nominal section(mm2) Number/Dia. of core(mm) Max. outer diameter Reference weight(kg/km) Conductor resistance at 20'c≤(Ω/km)
copper aluminum aluminum copper
4 1/2.25 4.4 47.1 22 7.39 4.61
6 1/2.76 4.9 50.3 29 4.91 3.08
10 7/1.35 7 119 62 3.08 1.83
16 7/1.70 8 179 78 1.91 1.15
25 7/2.14 10 281 118 1.2 0.727
35 7/2.52 11.5 381 156 0.868 0.524
50 19/1.78 13 521 215 0.641 0.387
70 19/2.14 15 734 282 0.443 0.268
95 19/2.52 17.5 962 385 0.32 0.193
120 37/2.03 19 1180 431 0.253 0.153




Click for more information





Packaging & Shipping



Company Information
Our Certificate
Copper Or Aliminum Conductor PVC Insulated Cable 0.6/1KV Pvc Armoured Cable 3
Our Services

Copper Or Aliminum Conductor PVC Insulated Cable 0.6/1KV Pvc Armoured Cable 4


1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.


Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .


Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.

Looking forward to cooperating with you.
