15 / 25 / 35kv Electrical Power Cable Aluminum Stranded Conductor Cross Linked Polyethylene Insulated

Product Description

15/25/35kv Aluminum stranded conductor cross-linked polyethylene insulated and sheathed spaced aerial cable

Application :

For used in primary aerial cable on pole.
Classification :
Temperatrue :Normal operation 90 °C, Emergency over load conditions 130 °C ,Short circuit conditions 250 °C
Voltage rating : 15 kV phase to phase.

AC Test voltage :

27 kVac 5 minutes
Reference standard :

ICEA S-66-524 / MEA / PEA

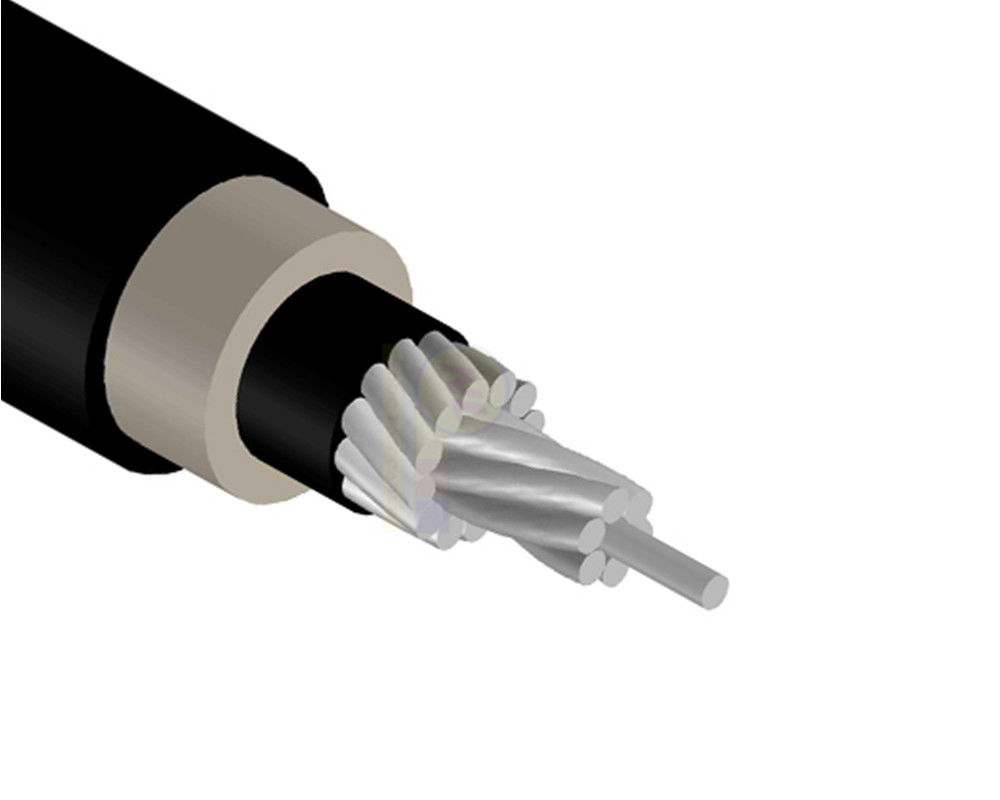

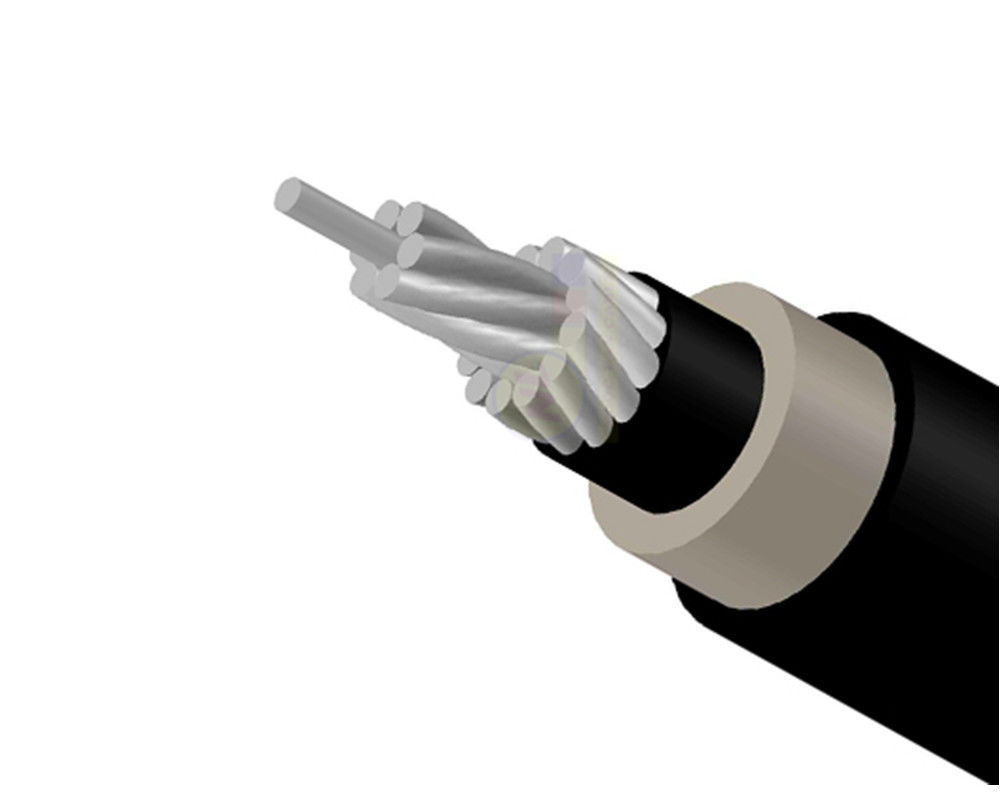

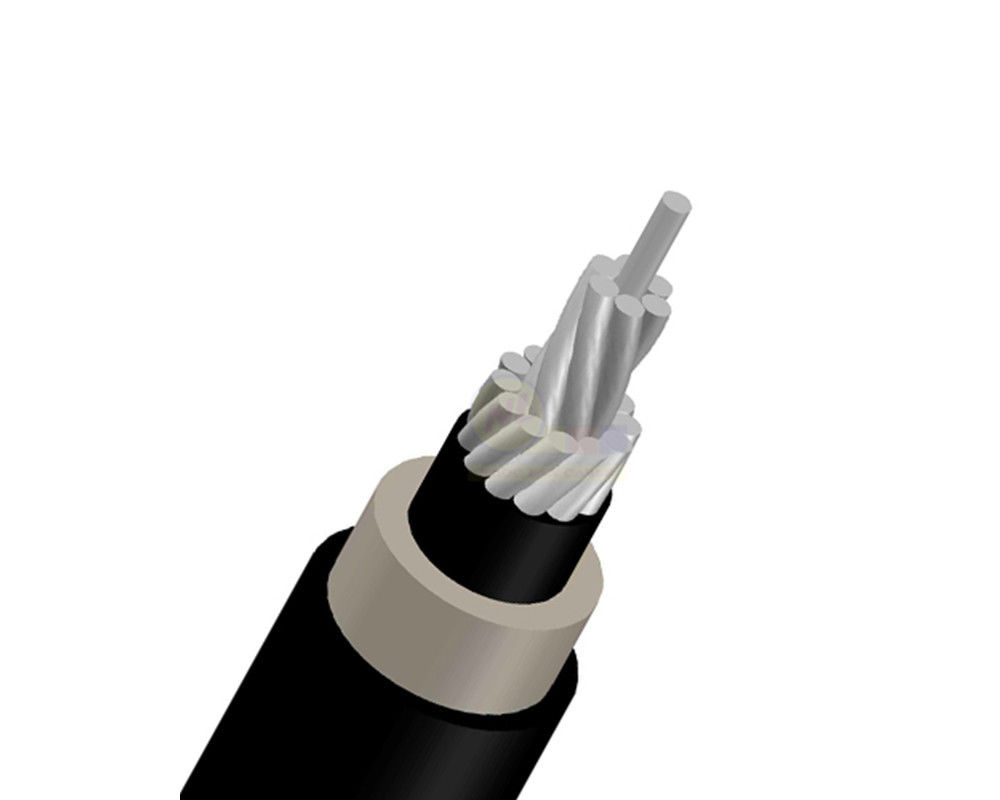

Construction :
Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)
