Home ProductsPVC Insulated Cable300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire
300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire
300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire 300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire 300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire 300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire 300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire
Contact Now

300 / 500V Twin Core PVC Insulated Cable Copper Conductor With Bare Earth Wire

Minimum Order Quantity : 1000meter
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: BS Model Number: VV

Detail Information
Conductor: Copper Insulation: PVC
Earth Wire: Bare Copper Sheath: PVC
High Light:

pvc insulated power cable

,

pvc jacket cable

Product Description

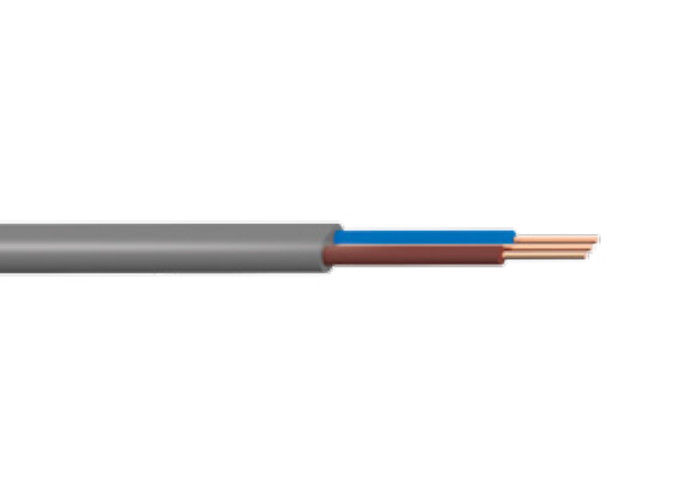

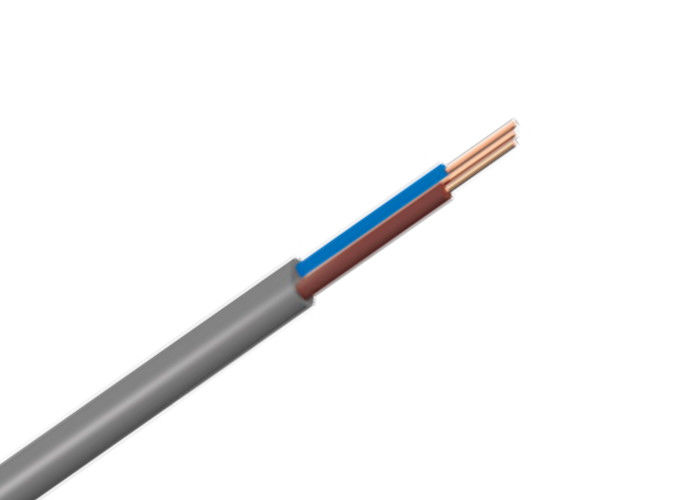

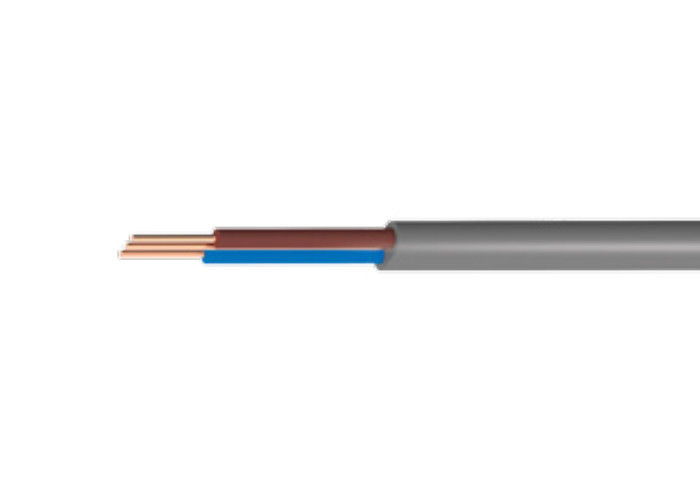

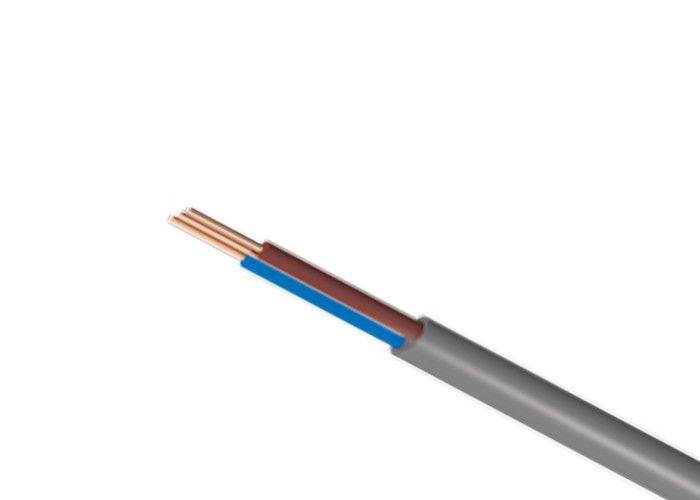

Rated voltage 300/500V twin core with bare earth wire PVC insulation Cable according BS 6004 624-Y





APPLICATION

Domestic wiring cable. Can be installed in fxed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue.

Suitable for laying in conduit or trunking where mechanical protection is required.

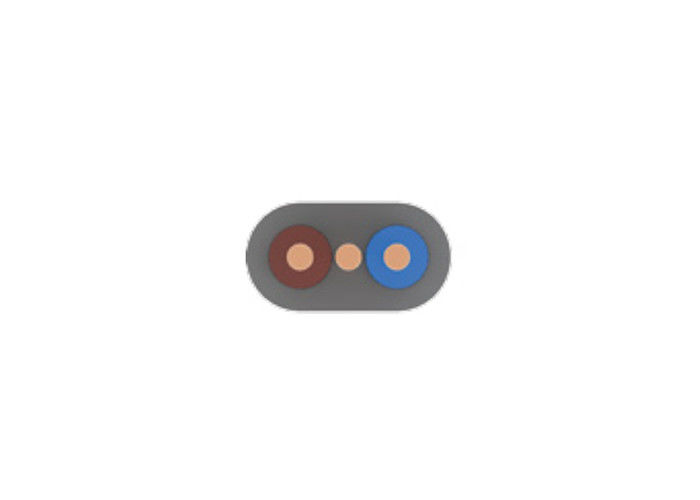

CONSTRUCTION
Conductor
Copper conductor according to BS EN 60228
(previously BS 6360)
1mm² to 2.5mm²: Class 1 solid conductor
4mm² to 16mm²: Class 2 stranded conductor
Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper conductor
4mm² to 16mm²: Class 2 stranded copper conductor
Insulation
PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363
Sheath
PVC (Polyvinyl Chloride) Type 6 according to BS 7655

CHARACTERISTICS
Voltage Rating (Uo/U)
300/500V
Temperature Rating
-5°C to +70°C
Short Circuit : +160°C
Minimum Bending Radius
Fixed: 6 x overall diameter
Core Identifcation
Brown Blue
Sheath Colour
Grey



DIMENSIONS

NO. OF
CORES		 NOMINAL
CROSS
SECTIONAL
AREA
mm²		 CONDUCTOR
CLASS		 CROSS SECTIONAL
AREA OF CIRCUIT
PROTECTIVE
CONDUCTOR
mm²		 NOMINAL
THICKNESS OF
INSULATION
mm		 NOMINAL
THICKNESS OF
SHEATH
mm		 NOMINAL
OVERALL
DIMENSIONS
mm		 NOMINAL
WEIGHT
kg/km
2
2
2
2
2
2
2
3
3		 1
1.5
2.5
4
6
10
16
1
1.5		 1
1
1
2
2
2
2
1
1		 1
1
1.5
1.5
2.5
4*
6*
1
1		 0.6
0.7
0.8
0.8
0.8
1
1
0,6
0.7		 0.9
0.9
1
1
1.1
1.2
1.3
0.9
0.9		 4.35 x 7.95
4.85 x 8.9
5.65 x 10.65
6.3 x 11.95
7.1 x 13.7
8.7 x 17.25
9.85 x 20
4.35 x 9.8
4.85 x 11.2		 68
87
120
172
235
373
530
91
115


CONDUCTORS
Class 1 Solid Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Plain Wires
ohms/km
1
1.5
2.5		 18.1
12.1
7.41

Class 2 Stranded Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²		 MINIMUM NO. OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR
AT 20ºC
Annealed Copper Conductor
Circular Plain Wires
ohms/km
4
6
10
16		 7
7
7
7		 4.61
3.08
1.83
1.15



ELECTRICAL CHARACTERISTICS
Current Carrying Capacity and Voltage Drop

NOMINAL CROSS
SECTIONAL AREA
mm²		 REFERENCE METHOD A*
(IN CONDUIT IN WALL)
Amps		 REFERENCE METHOD C*
(CLIPPED DIRECT)
Amps		 VOLTAGE DROP
mv/A/m
1
1.5
2.5
4
6
10
16		 11.5
14.5
20
26
32
44
57		 16
20
27
37
47
64
85		 44
29
18
11
7.3
4.4
2.8
