Telecommunication Equipment 600V Low Smoke Halogen Free RRU Power Cable
Contact Person : Andrea
Phone Number : 0086-371-60547601
whatsapp : +8613598873045
| Minimum Order Quantity : | 1000meters | Packaging Details : | Drum |
|---|---|---|---|
| Delivery Time : | 15days after payment | Payment Terms : | L/C, T/T |
| Place of Origin: | Henan | Brand Name: | CN CABLE |
|---|---|---|---|
| Certification: | VDE | Model Number: | NHXMH-J |
|
Detail Information |
|||
| Construction: | Copper Conductor :bare ,single-wired | Insulation: | VPE |
|---|---|---|---|
| Shielding: | Aluminum Foil Screening, | Sheath :: | Halogen Free Polymer |
| Name: | Halogen Free Cable | Model: | NHXMH-J |
| High Light: | lv armoured cable,low voltage electrical cable |
||
Product Description

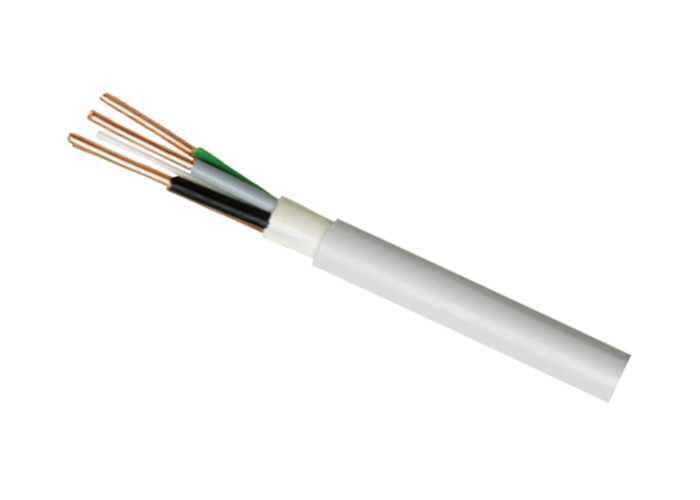

Halogen free sheathed cable with improved fire characteristics NHXMH-J type cable
Application
These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster, not for underground installation. NHXMH-J/O are especially used in buildings with a high concentration of persons or valuable property, where improved fire characteristics are needed. Outdoor usage is only possible, as long as the cable is protected against direct UV-sunlight.
This product conform to 2006/95/EG directive(low voltage directive)
Construction
Copper conductor: plain, single-or multi-wired
Insulation: cross-linked polyethylene compound
Stranding: stranded cores, filling compound
Sheath: halogen free thermoplastic polymer compound
Technical data
Nominal voltage 300/500v
Test voltage: 2000v
Continuous conductor temperature: max.70℃
Minimum bending radius in fixed condition: 4*cable diameter
| Section mm2 |
Colour | Copper content kg/km |
| NHXMH-J 1 x 1,5 re 3 x 1,5 re 4 x 1,5 re 5 x 1,5 re 7 x 1,5 re 10 x 1,5 re 12 x 1,5 re 16 x 1,5 re 21 x 1,5 re 24 x 1,5 re 1 x 2,5 re 3 x 2,5 re 4 x 2,5 re 5 x 2,5 re 7 x 2,5 re 1 x 4 re 3 x 4 re 4 x 4 re 5 x 4 re 1 x 6 re 3 x 6 re 4 x 6 re 5 x 6 re 1 x 10 re 3 x 10 re 4 x 10 re 5 x 10 re 1 x 16 rm 4 x 16 rm 5 x 16 rm 4 x 25 rm 5 x 25 rm 4 x 35 rm NHXMH-O 1 x 1,5 re 2 x 1,5 re |
gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr gr |
14,4 43,0 58,0 72,0 101,0 144,0 173,0 230,0 302,0 346,0 24,0 72,0 96,0 120,0 168,0 38,0 115,0 154,0 192,0 58,0 173,0 230,0 288,0 96,0 288,0 384,0 480,0 154,0 614,0 768,0 960,0 1200,0 1344,0 14,4 29,0 |
