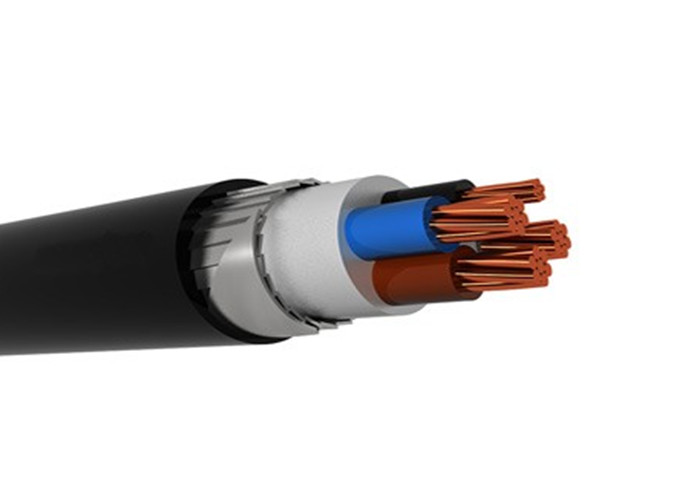

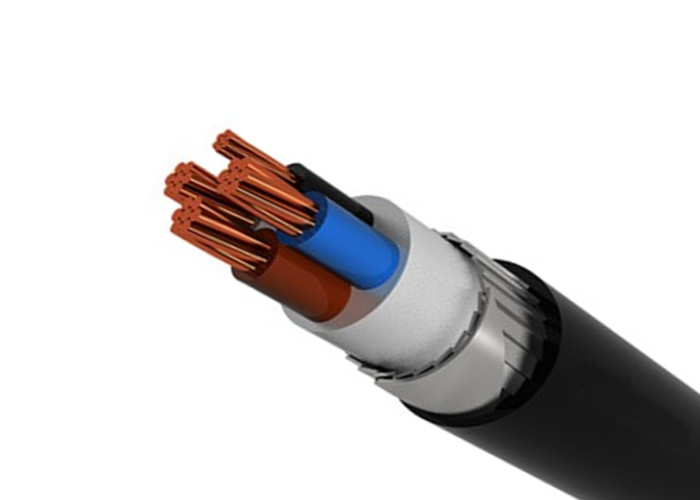

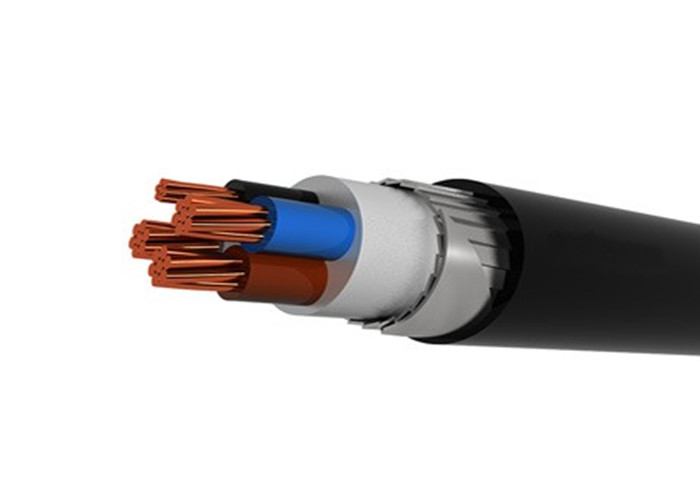

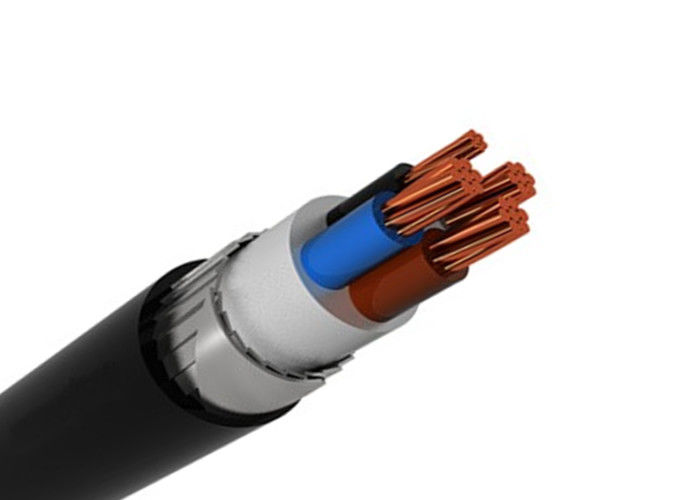

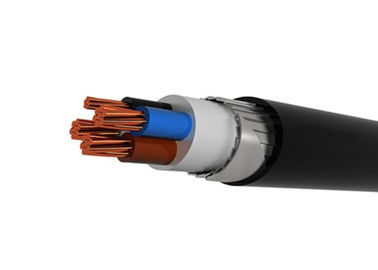

Flexible LV Power Cable Low Voltage Armored Cable With Galvanized Steel Tape
Flexible LV Power Cable Low Voltage Armored Cable With Galvanized Steel Tape Flexible LV Power Cable Low Voltage Armored Cable With Galvanized Steel Tape Flexible LV Power Cable Low Voltage Armored Cable With Galvanized Steel Tape Flexible LV Power Cable Low Voltage Armored Cable With Galvanized Steel Tape Flexible LV Power Cable Low Voltage Armored Cable With Galvanized Steel Tape
Contact Now

Flexible LV Power Cable Low Voltage Armored Cable With Galvanized Steel Tape

Minimum Order Quantity : 1000m Payment Terms : L/C, T/T
Place of Origin: HENAN Brand Name: CN CABLE
Model Number: YVZ3V

Detail Information
Conductor: Solid Or Stranded Copper Insulation: PVC
Filler: PVC Armoured: Galvanized Flat Steel Wires
Tape: Galvanized Steel Tape Outer Sheath: PVC
High Light:

lv armoured cable

,

low voltage electrical cable

Product Description

YVZ3V 0.6/1 kV TS IEC 60502-1

NYFGbY 0.6/1 kV VDE 0271

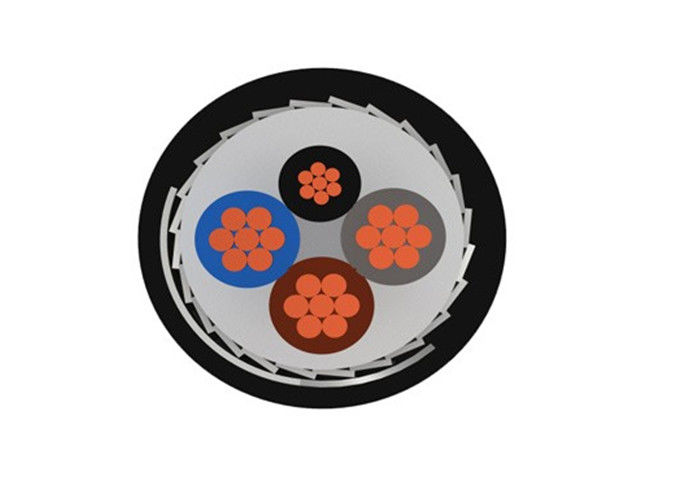

Structure

1. Solid or stranded copper conductor

2. PVC insulation

3. PVC filler

4. Galvanized flat steel wires

5. Galvanized steel tape

6. PVC outer sheath



Technical Data

Permissible operating temperature: 70 °C

Maximum short circuit temperature: 160 °C

(for + ≥ 5 second)

Test voltage (AC): 3.5 kV

Installation temp. min: -5 °C
Applications
Switching stations, industrial plants, where there is risk of mechanical damage.
Rated Cross
Section		 Overall Diameter
Of Cable		 Current Carrying
Capacity		 Conductor DC
Resistance at (20°C)		 Net
Weight
mm2 mm Air (A) Ground (A) Ohm/Km Kg/Km
1 x 95 rm 22.80 270 264 0.193 1,527.83
1 x 120 rm 24.20 315 300 0.153 1,832.42
1 x 150 rm 26.00 362 336 0.124 2,201.97
1 x 185 rm 28.40 420 379 0.099 2,724.16
1 x 240 rm 31.30 503 439 0.075 3,473.04
1 x 300 rm 34.20 580 494 0.060 4,288.05
1 x 400 rm 37.60 674 558 0.047 5,397.74
1 x 500 rm 41.40 781 629 0.037 6,794.67
1 x 630 rm 45.40 901 704 0.028 8,511.36
2 x 10 rm 18.80 70 80 1.830 855.91
2 x 16 rm 21.20 93 104 1.150 1,077.97
2 x 25 rm 24.20 123 134 0.727 1,436.35
2 x 35 rm 26.40 151 162 0.524 1,772.43
2 x 50 rm 30.00 182 191 0.387 2,268.81
2 x 70 rm 33.80 230 236 0.268 2,959.81
2 x 95 rm 38.40 280 281 0.193 3,841.88
2 x 120 rm 41.40 325 321 0.153 4,557.78
2 x 150 rm 45.80 371 361 0.124 5,541.60
2 x 185 rm 50.40 424 406 0.099 6,745.31
2 x 240 rm 56.80 501 470 0.075 8,606.68
2 x 300 rm 62.60 572 528 0.060 10,492.20
2 x 400 rm 69.60 634 541 0.047 13,085.29
3 x 10 rm 19.80 60 68 1.830 996.28
3 x 16 rm 22.30 79 88 1.150 1,270.45
3 x 25 rm 25.60 105 114 0.727 1,718.42
3 x 35 rm 28.20 129 137 0.524 2,156.70
3 x 50 rm 31.80 162 168 0.387 2,783.66
3 x 70 rm 36.10 203 206 0.268 3,678.95
3 x 95 rm 41.00 250 247 0.193 4,794.92
3 x 120 rm 44.60 289 281 0.153 5,799.66
3 x 150 rm 48.90 330 315 0.124 6,994.14
3 x 185 rm 54.30 381 356 0.099 8,602.79
3 x 240 rm 60.90 451 412 0.075 10,937.97
3 x 300 rm 67.10 517 464 0.060 13,366.92
3 x 400 rm 74.90 594 524 0.047 16,829.89
3 x 10 + 6 rm 21.30 68 77 1.830 1,102.70
3 x 16 + 10 rm 23.50 90 99 1.150 1,434.34
3 x 25 + 16 rm 27.00 121 128 0.727 1,945.56
3 x 35 + 16 rm 29.00 149 154 0.524 2,347.53
3 x 50 + 25 rm 33.60 173 173 0.387 3,131.54
3 x 70 + 35 rm 37.40 215 212 0.268 4,063.06
3 x 95 + 50 rm 42.80 266 255 0.193 5,336.53
3 x 120 + 70 rm 46.90 308 289 0.153 6,562.46
3 x 150 + 70 rm 50.30 357 327 0.124 7,660.17
3 x 185 + 95 rm 56.70 405 366 0.099 9,648.57
3 x 240 + 120 rm 62.80 482 425 0.075 12,076.27
3 x 300 + 150 rm 69.20 552 479 0.060 14,790.74
3 x 400 + 185 rm 77.30 643 545 0.047 18,569.81
4 x 10 rm 21.70 68 77 1.830 1,180.48
4 x 16 rm 24.10 90 99 1.150 1,511.87
4 x 25 rm 27.90 121 128 0.727 2,100.18
4 x 35 rm 30.80 149 154 0.524 2,645.13
4 x 50 rm 35.30 173 173 0.387 3,468.81
4 x 70 rm 39.50 215 212 0.268 4,533.10
4 x 95 rm 45.70 266 255 0.193 6,055.31
4 x 120 rm 49.30 308 289 0.153 7,272.66
4 x 150 rm 54.20 357 327 0.124 8,837.64
4 x 185 rm 60.30 405 366 0.099 10,878.55
4 x 240 rm 67.30 482 425 0.075 13,779.07
4 x 300 rm 74.60 552 479 0.060 16,981.92
4 x 400 rm 82.90 643 545 0.047 21,300.39
4 x 10 + 6 rm 22.70 68 77 1.830 1,262.98
4 x 16 + 10 rm 25.10 90 99 1.150 1,641.43
4 x 25 + 16 rm 29.40 121 128 0.727 2,346.52
4 x 35 + 16 rm 32.00 149 154 0.524 2,877.31
4 x 50 + 25 rm 37.10 173 173 0.387 3,834.69
4 x 70 + 35 rm 41.30 215 212 0.268 4,987.68
4 x 95 + 50 rm 47.80 266 255 0.193 6,692.66
4 x 120 + 70 rm 52.20 308 289 0.153 8,217.81
4 x 150 + 70 rm 56.70 357 327 0.124 9,729.73
4 x 185 + 95 rm 63.10 405 366 0.099 12,037.97
4 x 240 + 120 rm 70.30 482 425 0.075 15,193.67
4 x 300 + 150 rm 77.90 552 479 0.060 18,738.15
4 x 400 + 185 rm 86.60 643 545 0.047 23,470.93
5 x 10 rm 23.30 71 78 1.830 1,367.42
5 x 16 rm 26.00 94 101 1.150 1,797.57
5 x 25 rm 30.50 126 131 0.727 2,522.25
5 x 35 rm 34.00 155 157 0.524 3,209.18
5 x 50 rm 38.50 189 185 0.387 4,156.81
5 x 70 rm 43.30 215 212 0.268 5,496.65
5 x 95 rm 50.00 266 255 0.193 7,326.10
5 x 120 rm 54.40 308 289 0.153 8,907.48
5 x 150 rm 59.80 357 327 0.124 10,811.86
5 x 185 rm 66.20 405 366 0.099 13,272.17
5 x 240 rm 74.50 482 425 0.075 16,935.33
5 x 300 rm 82.40 552 479 0.060 20,850.46
5 x 400 rm 92.00 643 545 0.047 26,398.20
