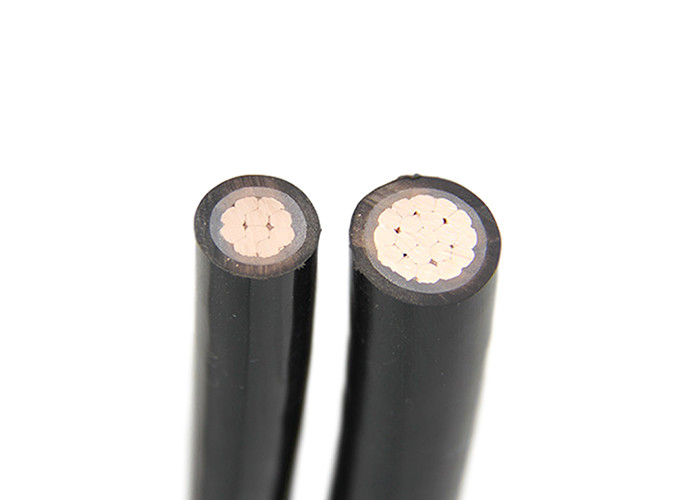

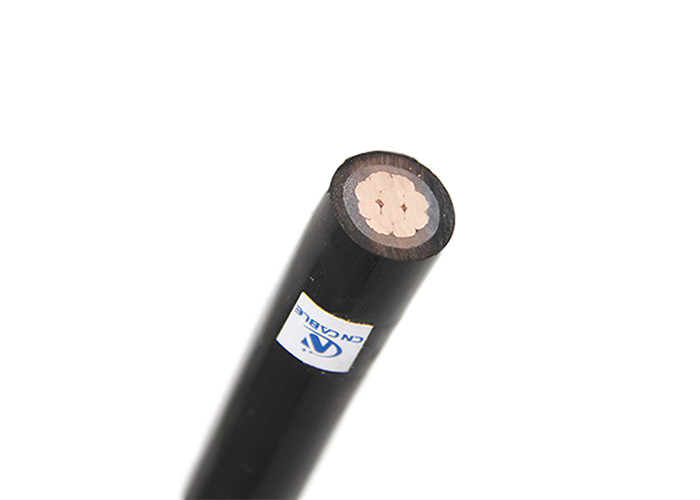

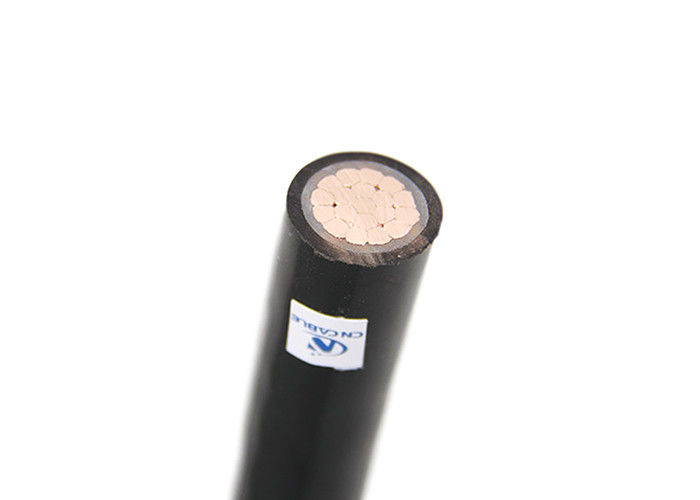

1 Core LV XLPE 50mm2 Low Voltage Armored Cable

Minimum Order Quantity : 1000m Payment Terms : L/C, T/T
Place of Origin: HENAN Brand Name: CN CABLE
Model Number: YVZ3V

Detail Information

Conductor: Copper Insulation: XLPE
Dia: 50mm2 Voltage: 0.6/1kv
Core Number:: 1 Outer Sheath: PVC
High Light:

50mm2 Low Voltage Armored Cable


XLPE Low Voltage Armored Cable

Product Description

A cable is a conductor covered with an insulating layer, a protective layer, a shielding layer, etc. used to transmit power, signal current, or signal voltage. According to the voltage, it can be divided into high-voltage cable and low-voltage cable. Compared with low-voltage overhead lines and low-voltage overhead insulated lines, low-voltage cable lines are more costly and difficult to lay and maintain, but because of their reliable operation, they do not stand on poles, do not occupy the ground, are unobtrusive, and are less affected by the outside world. Characteristics, and is widely used in low-voltage distribution systems.


LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.



1. Copper conductor

2. XLPE insulated

3. Cable dia.50 mm2

4. Cable core number: 1Core

5. PVC outer sheath


1.Rated voltage: 0.6/1KV
2.Cable core number: 1Core.
3.Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation.
In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulation.


Single(1) core, 50mm2  XLPE Insulated Power Cable
Size Cable dia. Cable weight
None- Steel tape armored Steel wire armored None- Steel tape armored Steel wire armored
armored armored
mm2 mm kg/km
35 11.7 16.5 17.8 389 179 564 355 610 401
50 13.1 17.9 19.2 525 231 719 425 768 474
70 15 19.8 21.1 717 305 935 522 988 575
