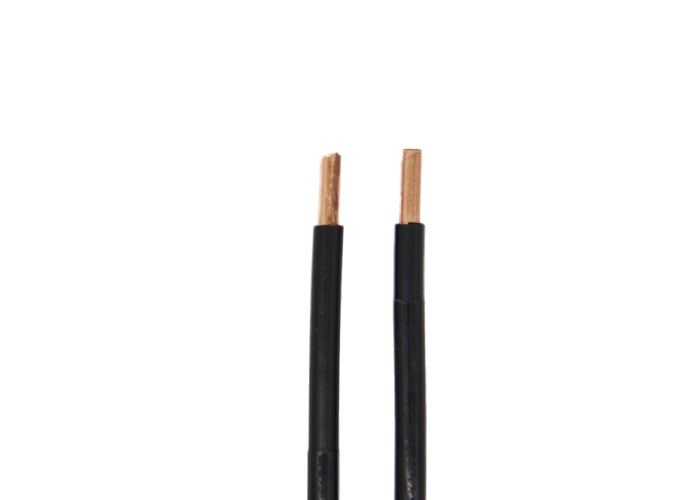

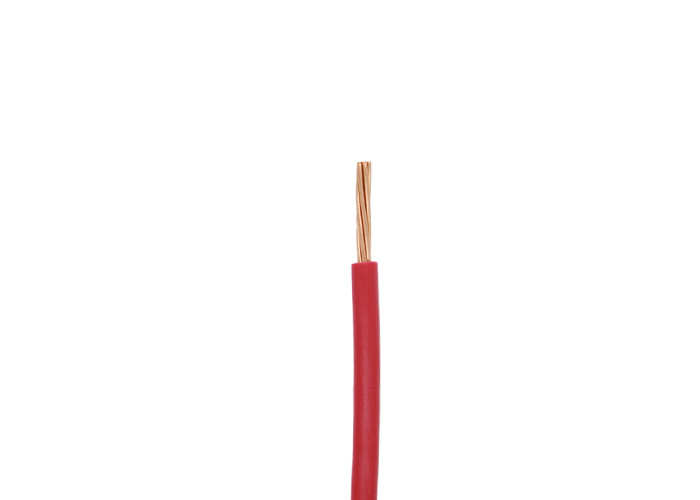

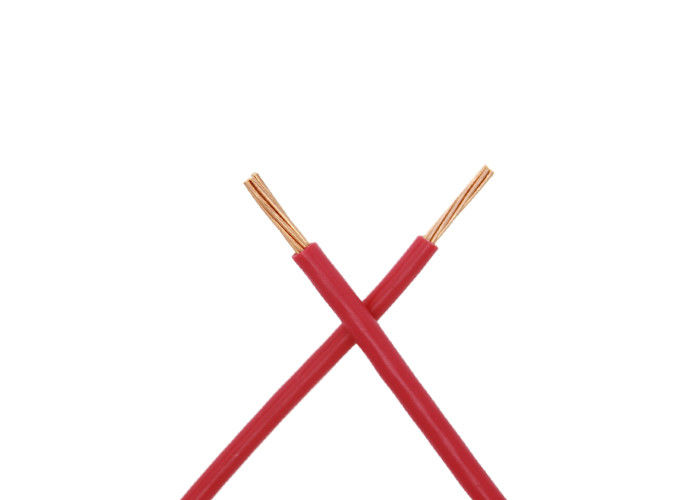

Single Core PVC Insulation 300V 4mm 6mm LV Power Cable

Minimum Order Quantity : 1000meters
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: IEC 60227 Model Number: Electric wire

Detail Information

Conductor: Single Copper Core Insulated: PVC Insulation
Colour: Black, Red Application: Building,construction
Type: Low Voltage Jacket: PVC
High Light:

6mm LV Power Cable


300V LV Power Cable


IEC 60227 PVC Insulation Cable

Product Description

Lv 4mm 6mm PVC XLPE Insulated Single Core Copper Electric Power Cables And Wires



  • This cable belongs to the series of electric wires, which are mainly suitable for laying at the fixed places.
  • They are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V.
  • Part of the plastic wires are used at the equipment with AC rated voltage up to 300/300V.



  • Rated voltage : 300/500V , 450/750V
  • Conductor : Copper, Class1 , Class2 , Class5 , Class6
  • Insulation : PVC/XLPE/PE
  • Shape : Round / Flat (For two cores and above)
  • Colour : Green , Yellow , Red , Blue , Grey , Black , White , Orange , etc.




According to IEC, BS, VDE, ASTM, CSA , AS/NZS , etc.


Packing: Roll/ Wooden drum


Single Core PVC Insulation 300V 4mm 6mm LV Power Cable 0


Technical parameter



450/750V Solid Cu /PVC Insulation
Size Cu conductor PVC Insulation Approx. Overall Dia. Approx. Weight
mm2 Str. No. Dia. Nominal Thickness
No.s mm mm mm kg/km
4 1 2.26 0.8 3.9 48
6 1 2.76 0.8 4.4 67
10 1 3.57 1 5.6 111
