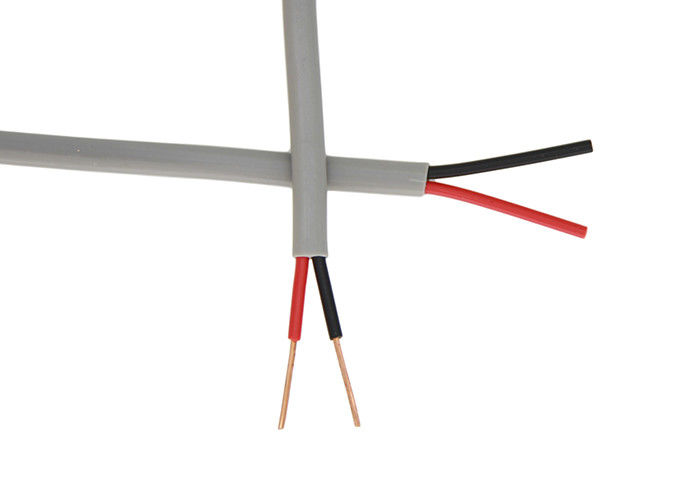

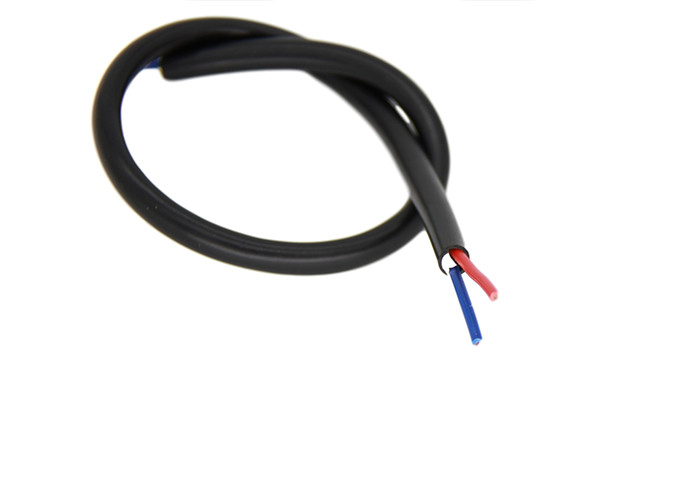

Lighting 2 Cores IEC 60227 XLPE Insulated LV Power Cable

Minimum Order Quantity : 1000meters
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: IEC 60227 Model Number: Electric wire

Detail Information

Conductor: Copper Core Insulated: PVC Insulation
Core: 2 Cores Application: Building,construction
Type: Low Voltage Jacket: PVC
High Light:

IEC 60227 LV Power Cable

,

XLPE Insulated LV Power Cable

,

2 Cores LV Cable

Product Description

Low Voltage 2 Core 1.5mm 2.5mm PVC XLPE Insulated Copper Electrical Cables And Wires



Application

  • This cable belongs to the series of electric wires, which are mainly suitable for laying at the fixed places.
  • They are widely used as connectors of driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V.
  • Part of the plastic wires are used at the equipment with AC rated voltage up to 300/300V.



Construction

  • Rated voltage :  450/750V
  • Conductor : Copper, Class1 , Class2 , Class5 , Class6
  • Cores: 2 cores
  • Insulation : PVC/XLPE/PE
  • Shape : Round / Flat (For two cores and above)
  • Colour : Green , Yellow , Red , Blue , Grey , Black , White , Orange , etc.
  • Outer sheath: PVC





Standard

According to IEC, BS, VDE, ASTM, CSA , AS/NZS , etc.



Packing: Roll/ Wooden drum



Lighting 2 Cores IEC 60227 XLPE Insulated LV Power Cable 0

Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales



We can produce according to the required standard.





Technical parameter



450/750V , 2Core,3Core, 4Core,5Core Round Electric Wire
Core No. Conductor Size Cu Conductor Insulation Nominal Thickness Outer Sheath Thickness Approx. Overall Dia. Approx. Weight
No.s mm2 No.s mm mm mm mm kg/km
2 1.5 7 1.56 0.7 1.2 9.4 89
2 2.5 7 2.01 0.8 1.2 10.7 121
2 4 7 2.55 0.8 1.2 11.8 158
