Building LV Flame Retardant 3 Core LSHF Pvc Insulated Wires

Minimum Order Quantity : 1000meters
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: IEC 60227 Model Number: 3 core electric wire

Detail Information

Conductor: Copper Core Insulated: PVC Insulation
Core: 3 Cores Application: Building,construction
Type: Flexible Jacket: PVC
High Light:

LSHF Pvc Insulated Wires

,

Flame Retardant Pvc Insulated Wires

,

ANSI LV Pvc Insulated Wires

Product Description

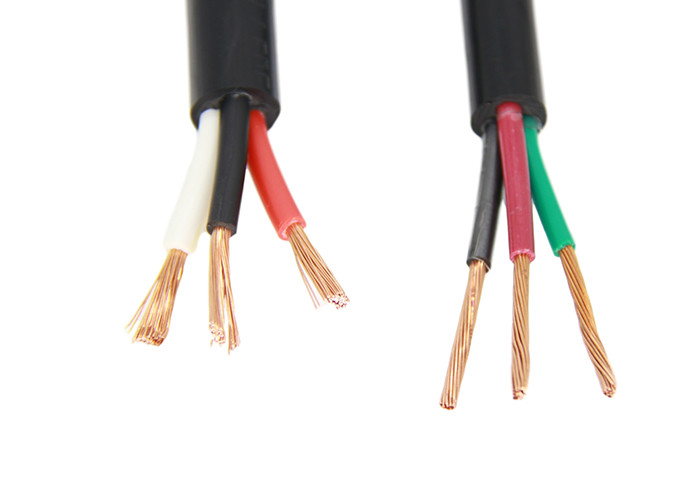

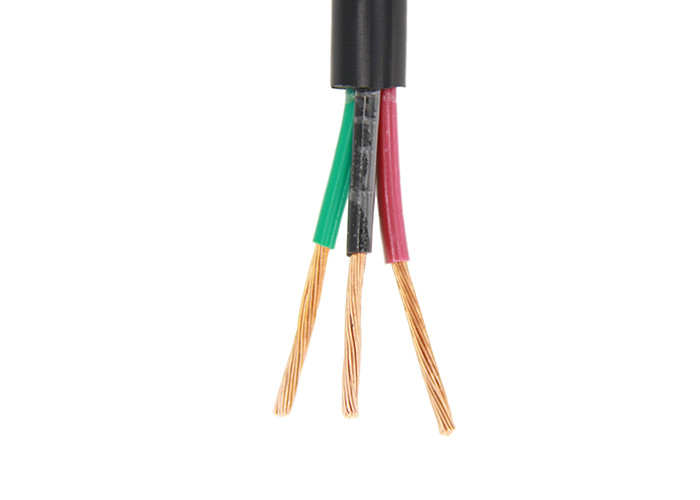

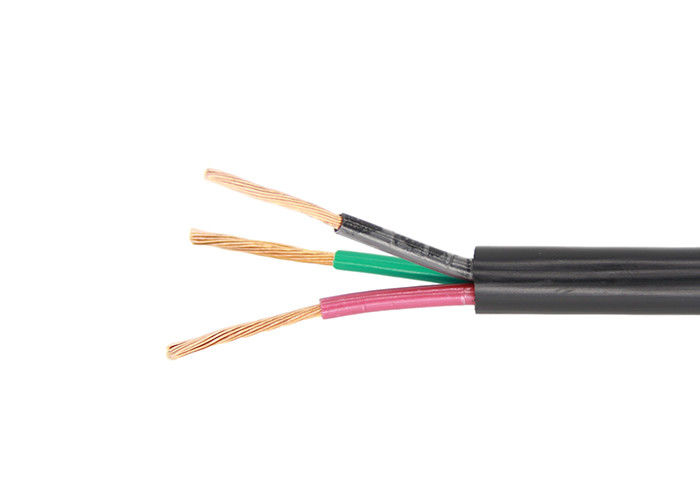

Low Voltage 3 Core 4mm 6mm Flexible Copper Conductor PVC Insulated Electric Wires



Application

The cable is mainly used in power lines, control lines and signal transmission lines for electrical appliances, instruments, electronic equipment and automation devices. It can be used in burglar alarm systems, building intercom systems, etc. And it can also be used for connecting small home appliances such as vacuum cleaners, washing machines, refrigerators, etc.



Construction

Cu conductor, PVC Insulation, PVC Sheath, LSHF, Flame retardant are both available if required.



Standard

IEC227, BS6004, ANSI



Advantage:

1. Rich production experience.

2. Strict quality control procedures

3. Product testing

4. Quality assurance and after-sales



We can produce according to the required standard.



Packing

Roll/ Wooden drum



Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales



We can produce according to the required standard.



Technical parameter



450/750V , 2Core,3Core, 4Core,5Core Round Electric Wire
Core No. Conductor Size Cu Conductor Insulation Nominal Thickness Outer Sheath Thickness Approx. Overall Dia. Approx. Weight
No.s mm2 No.s mm mm mm mm kg/km
3 1.5 7 1.56 0.7 1.2 9.9 113
3 2.5 7 2.01 0.8 1.2 11.3 157
3 4 7 2.55 0.8 1.2 12.5 211
3 6 7 3.12 0.8 1.4 14.1 290
