Workshop IEC60245 4 Core 2.5mm Rubber Insulated Cable

Minimum Order Quantity : 1000meters
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: IEC 60227 Model Number: 4 core electric wire

Detail Information

Conductor: Copper Core, Class 5 Insulated: PVC Insulation
Core: 4 Cores Application: Building,construction
Type: Flexible Jacket: PVC
High Light:

2.5mm Rubber Insulated Cable

,

IEC60245 Rubber Insulated Cable

,

Flexible Copper Conductor LV Cable

Product Description

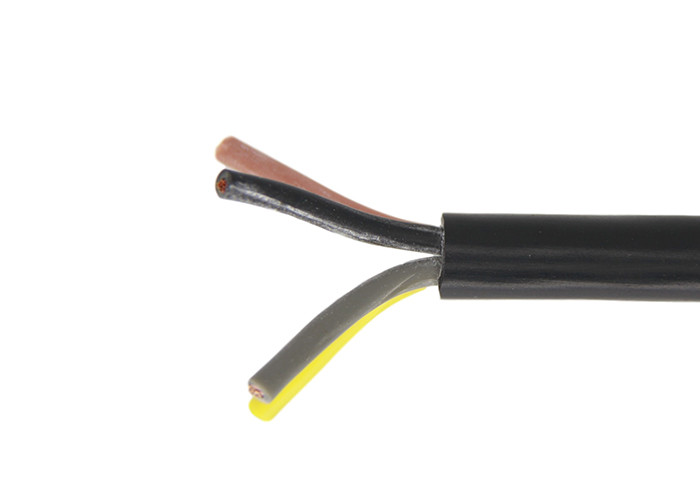

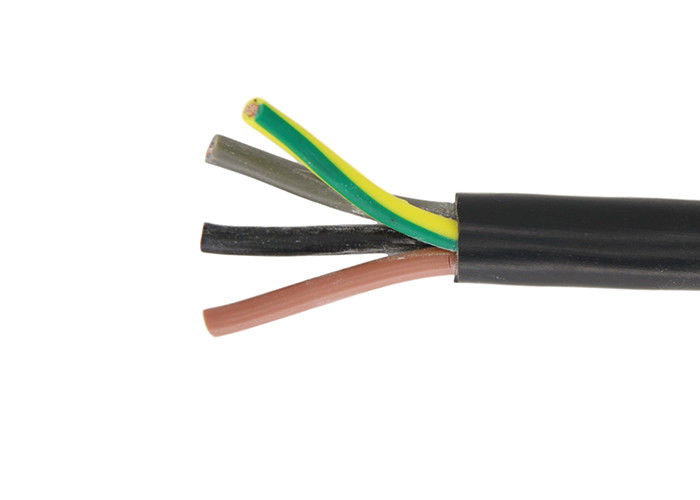

H07RN-F 4 Core 2.5mm 4mm 6mm Flexible Copper Conductor Rubber Insulated Wires



Application

H07RN-F is suitable for use in dry, humid or moist rooms, open air, and workshops with an explosive atmosphere. Such as medium mechanical stresses, including industrial and agricultural workshop appliances, large boiling installations, heating plates, inspection lamps and transportable motors or machines on building sites or in agricultural workings, etc.



Construction

Flexible copper conductor / EPR Insulation / Jacket: Neoprene rubber



Standard

IEC60245 , HD 22.4



Advantage

1. Rich production experience.

2. Strict quality control procedures

3. Product testing

4. Quality assurance and after-sales



We can produce according to the required standard.



Packing

Roll/ Wooden drum

Workshop IEC60245 4 Core 2.5mm Rubber Insulated Cable 0



Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales



We can produce according to the required standard.



Technical parameter



H07RN-F
No. of Core Conductor Size Cu Conductor Insulation Outer sheath Approx. Cable Dia. Approx. Cable Weight
Single Wire Dia. Approx. Overall Dia. Nominal Thickness Nominal Thickness
No.s mm2 mm mm mm mm mm kg/km
4 1.5 ≤0.26 1.6 0.8 1.7 11.3 200
4 2.5 ≤0.26 2.34 0.9 1.9 14 311
4 4 ≤0.31 2.88 1 2 16 432
4 6 ≤0.31 3.51 1 2.3 18.1 577
