Single Core Flame Retardant LSHF Pvc Insulated Cable

Minimum Order Quantity : 1000m Packaging Details : Coil,Pallet,Box,Drum
Delivery Time : 3-30 days Payment Terms : Western Union, L/C, T/T, MoneyGram
Supply Ability : 3000km per month
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Certification: CE Model Number: Electric wire

Detail Information

Type: Low Voltage Application: Fixed Installations
Conductor: Cu Core Number: 1
Insulation: PVC Outer Characters: Flame Retardant, Fire Resistant, LSHF
Rated Voltage: 300/500V,450/750V Certificate: ISO9001/ISO14001 ,CE
Standard: IEC, BS, ICEA, CSA, NF, AS-NZS Colour: Black,grey,yellow/green/blue/brown/
High Light:

LSHF Pvc Insulated Cable

,

Low Voltage Pvc Insulated Cable

,

500V Pvc Insulated Cable

Product Description

PVC INSULATED CABLE SNGLE CORE CABLE H05V-U/H07V-U

H05V-U/H07V-U CABLE





Application:

H07V-U Cables are used for indoor fixed installations in dry locations, in switchboards and distributors, under and surface mounting of plasters or on suitably objects. They are not allowed to install for direct laying in cable trays, channels or tanks.



Standard:

VDE 0281-3 , VDE 0295 ,IEC 60228



Cable Construction:

Conductor: Solid bare copper wire

Insulation: PVC

Color available: Black/Brown/Blue/Green/Grey/Orange/Red/Yellow ,etc



Technical Characteristics:

Rated voltage: 300/500v (H05V-U)/ 450/750v (H07V-U)

Test voltage: 2000V(H05V-U)/2500V (H07V-U)

Flexing bending radius: 15 x D

Static bending radius: 15 x D

Temperature range: -5℃ to +70℃

Short circuit temperature: 160 ℃

Flame retardant: IEC 60332.1



Parameter:

Conductor size Conductor PVC Insulation Thickness Cable overall Dia.

Weight

kg/km

Stranding no. Single Wire dia. Dia.
AWG MM2 / mm mm mm mm
20 0.51 1 0.81 0.81 0.6 2 9
18 0.81 1 1.02 1.02 0.6 2.2 12
16 1.31 1 1.3 1.3 0.7 2.7 19
14 2.07 1 1.63 1.63 0.8 3.2 28
12 3.33 1 2.06 2.06 0.8 3.7 41
10 5.26 1 2.59 2.59 0.8 4.2 60
8 8.37 1 3.26 3.26 1 5.3 95
-- 0.5 1 0.80 0.80 0.6 2 8
-- 0.75 1 0.98 0.98 0.6 2.2 12
-- 1 1 1.13 1.13 0.6 2.3 14
-- 1.5 1 1.38 1.38 0.7 2.8 20
-- 2.5 1 1.78 1.78 0.8 3.4 32
-- 4 1 2.26 2.26 0.8 3.9 48
-- 6 1 2.76 2.76 0.8 4.4 67

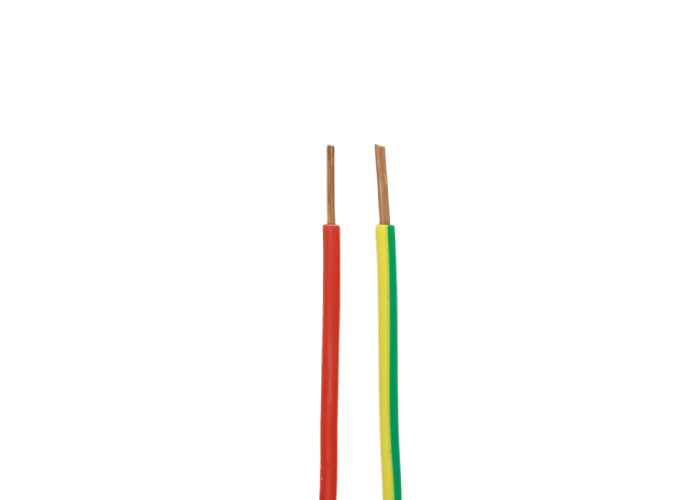

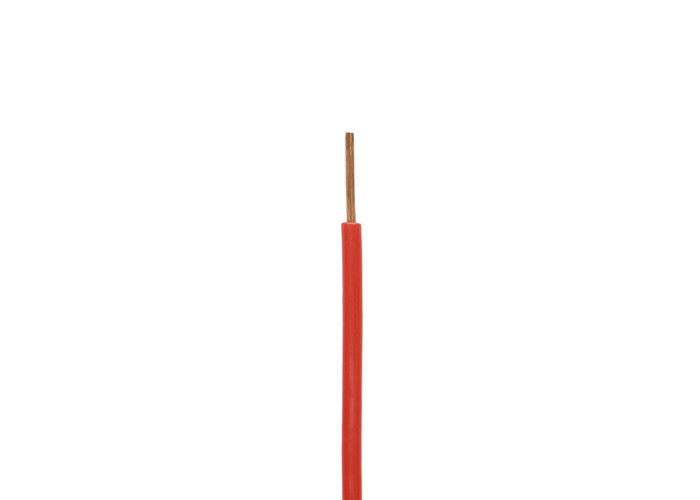

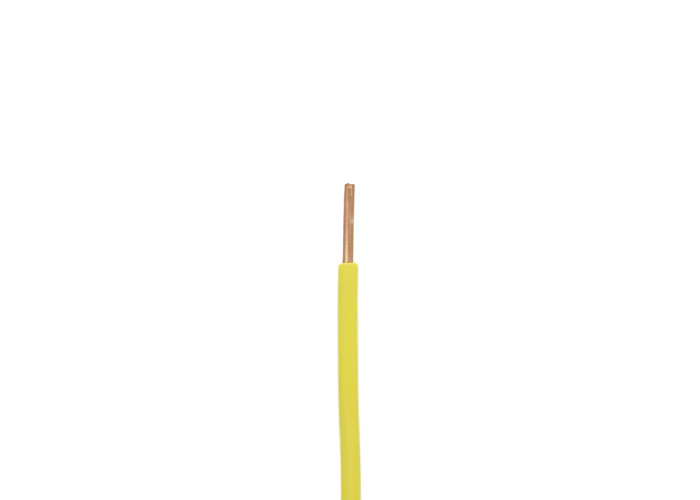

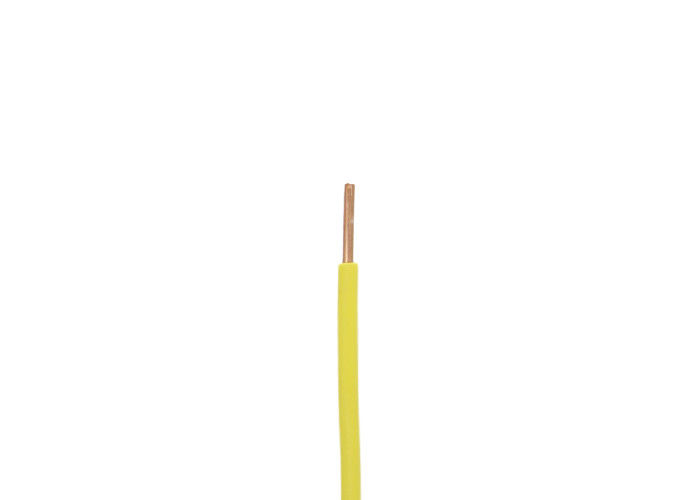

Single Core Flame Retardant LSHF Pvc Insulated Cable 0Single Core Flame Retardant LSHF Pvc Insulated Cable 1Single Core Flame Retardant LSHF Pvc Insulated Cable 2

Our Certificate
Single Core Flame Retardant LSHF Pvc Insulated Cable 3
Our Services



1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients



FAQ




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.



Looking forward to cooperating with you.
