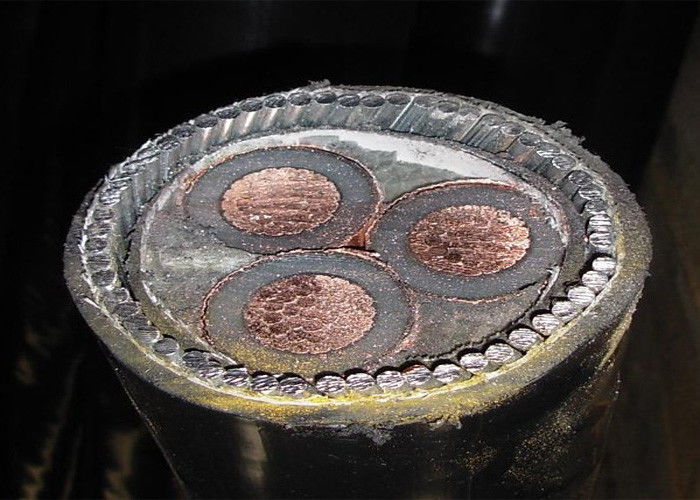

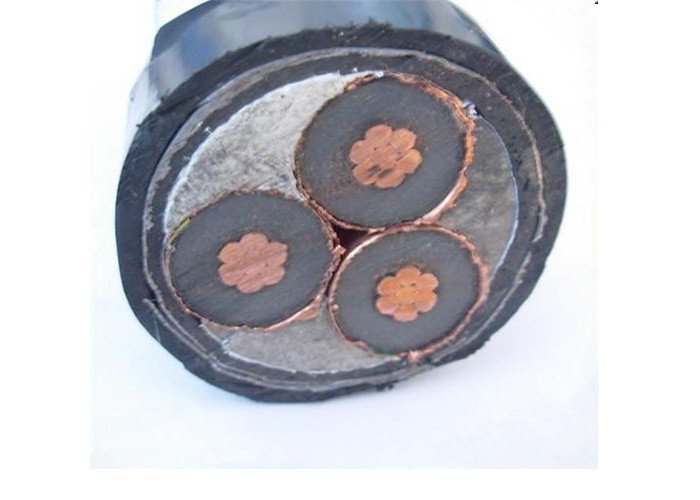

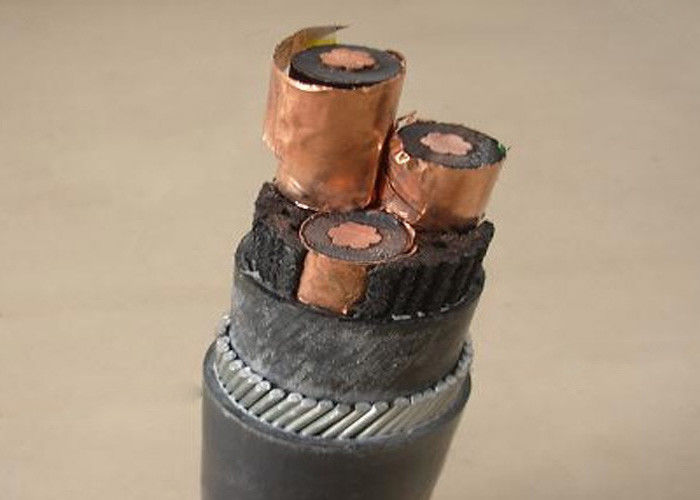

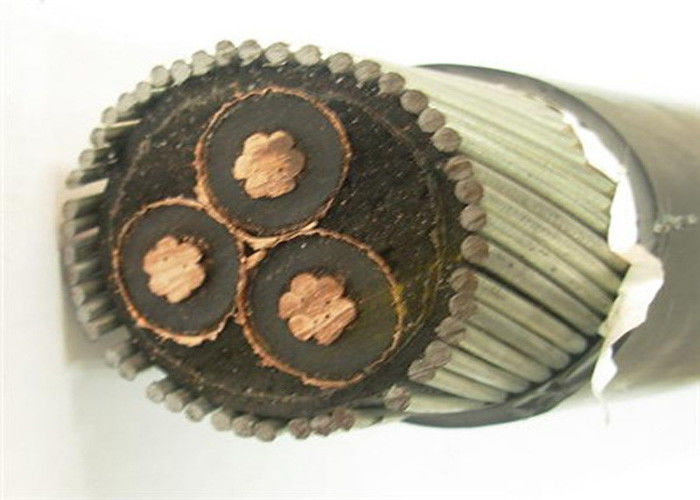

5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
|Insulation Material:||XLPE||Type:||Medium Voltage|
|Jacket:||PVC||Product Name:||Medium Voltage Cu XLPE Insulated Copper Core Armoured Power Cable|
|Core:||1 Core / 3 Core||Sheath:||PVC/PE|
|Standard:||IEC60502-2, BS 6622, NFC 33226, Etc.||Package:||Wooden Reel, Iron-wooden Reel, Steel Reel|
medium voltage power cables,
insulated power cable
The product is used in power transmission and distribution line at voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.
Rated Voltage: 1KV to 35KV
Cross-section area: up to 1000 .
Conductor long-time operating temperature: 90℃
Short circuit conductor highest temperature: 250℃
Core Number: 1 core/ 3 Core
Conductor: Cu / AL
Metallic screen: Cu tape/ Cu wire screen / Al-Plastic Tape screen
Armor type: AL Tape/AL Wire /STA / SWA
Outer sheath: PVC / PE/ LDPE / LLDPE/LSHF
Product date sheet
|Rated Voltage||XLPE/TRXLPE Insulation Nominal Thickness||Metal Screen||Aemor Dimension|
|Copper Tape||Copper Wire||Tape||Wire|
|3.6/6||2.5-3.2||0.06-0.12||Dia.Min.0.9mm, Wire No. According to Screen Size||0.2-0.5||0.8-5.0|
