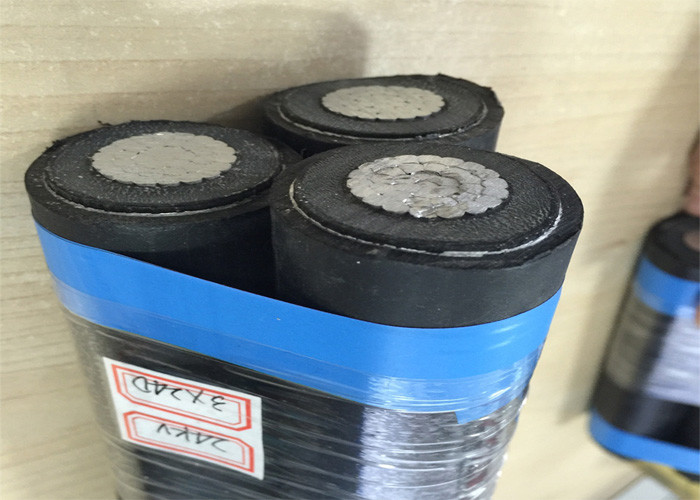

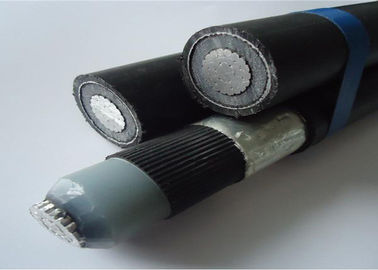

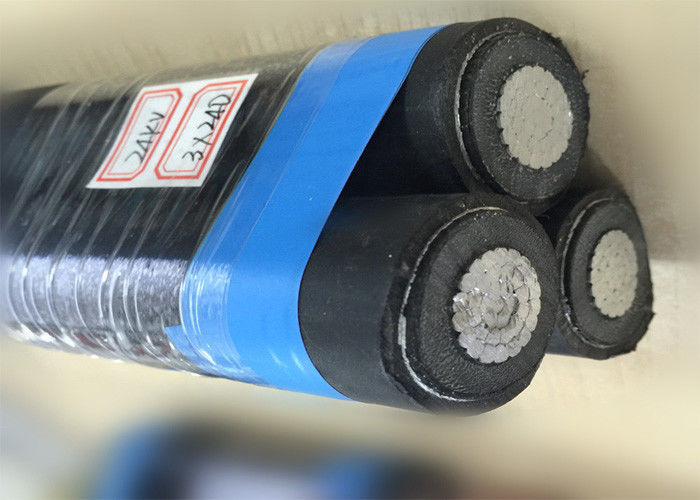

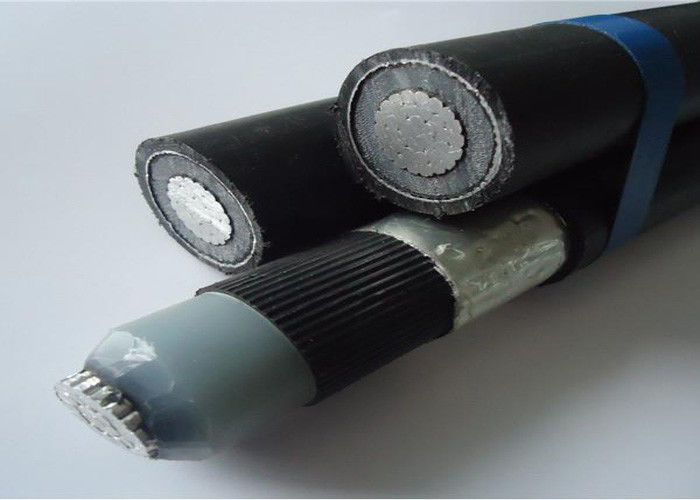

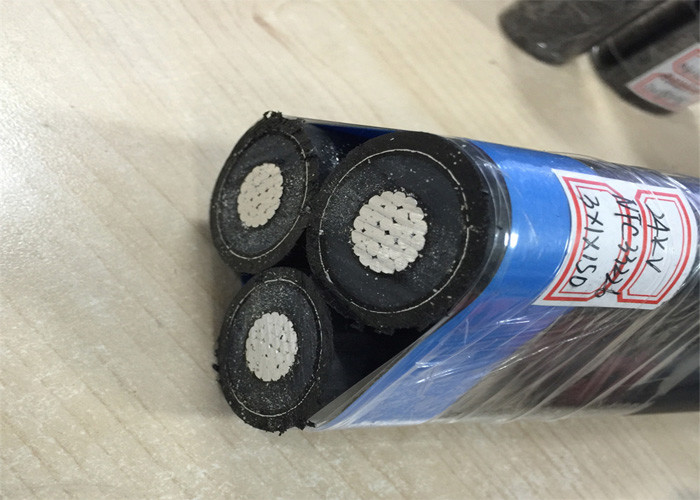

Aluminium Conductor Al Tape Longitigud Shielded Power Cable With PE Outer Jacket

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: MV

Detail Information

Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Aluminum
Jacket: PVC Product Name: Aluminium Al Tape Longitigud Shield Power Cable With PE Outer Jacket
Rated Voltage: 1-35KV Conductor: Al/Cu
Core: 1 Core / 3 Core Sheath: PVC/PE
Color: Black/Red Certificate: ISO9001/ISO14001
Standard: IEC60502-2, BS 6622, NFC 33226, Etc. Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

medium voltage power cables

,

concentric neutral cable

Product Description

Aluminium conductor al tape longitigud shield power cable with PE outer jacket

Product Description

standard power cable sizes.jpg



Application:

The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.



Applicable Standard:

We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.



Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃





Cable Structure:

Core Number: 1 core/ 3 Core

Conductor: Cu / AL

Insulation: XLPE / TRXLPE

Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape / AL Wire / STA / SWA

Outer sheath: PVC / PE / LDPE / LLDPE / LSHF





Product date sheet



Conductor Size Stranding No. (Compacted Round) Conductor Dia. Max.D.C.resistance at 20℃
Cu Al Cu Al
mm² No.s No.s mm Ω/KM Ω/KM
25 ≥6 ≥6 5.6-6.5 0.727 1.2
35 ≥6 ≥6 6.6-7.5 0.524 0.868
50 ≥6 ≥6 7.7-8.6 0.387 0.641
70 ≥12 ≥12 9.3-10.2 0.268 0.443
95 ≥15 ≥15 11.0-12.0 0.193 0.32
120 ≥18 ≥15 12.3-13.5 0.153 0.253
150 ≥18 ≥15 13.7-15.0 0.124 0.206
185 ≥30 ≥30 15.3-16.8 0.0991 0.164
240 ≥34 ≥30 17.6-19.2 0.0754 0.125
300 ≥34 ≥30 19.7-21.6 0.0601 0.1
400 ≥53 ≥53 22.3-24.6 0.047 0.0778
500 ≥53 ≥53 25.3-27.6 0.0368 0.0605
630 ≥53 ≥53 28.7-32.5 0.0283 0.0469
800 ≥53 ≥53   0.0221 0.0367
1000 ≥53 ≥53   0.0176 0.0291
