Bare Copper Wire EPR MV Power Cable PE Sheath 15KV Underground Cables
Bare Copper Wire EPR MV Power Cable PE Sheath 15KV Underground Cables
Contact Now

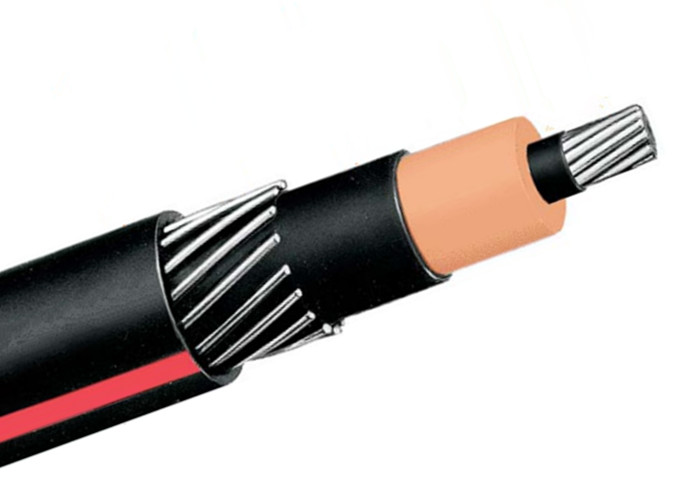

Bare Copper Wire EPR MV Power Cable PE Sheath 15KV Underground Cables

Minimum Order Quantity : 1000meters
Place of Origin: Henan Brand Name: CN CABLE
Certification: ASTM Model Number: Concentric Cable

Detail Information
Conductor: Stranded Aluminum Conductor Screen: Semi-conductive EPR
Insulation: EPR Insulation Screen: Conductive EPR
Concentric Conductor: Bare Copper Wire Outer Sheath: PE Sheath
High Light:

medium voltage power cables

,

concentric neutral cable

,

insulated power cable

Product Description

15KV Aluminum Conductor EPR Insulated Underground Primary Destribution cable





Applicaition:

15kv underground cables provide maximum circuit longevity in underground residential distribution systems. They can be buried directly or installed in underground ducts or conduits.



Product Date



No.

Conductor Size



Niminal Dia.over Insulation.

Nominal Dia. over insulation screen.

 Neutral No.of copper wire

Nominal O.D.



 Approx. weight 90℃ Ampacity 105℃ Ampacity
AWG / Kcmil In. In. In. Net Gross Direct Burial Duct Direct Burial Duct
Full Neutral
1 2(1) 0.66 0.73 10*14 0.97 513 603 165 120 180 130
2 2(7) 0.67 0.75 10*14 0.98 517 568 165 120 180 130
3 1(19) 0.72 0.80 13*14 1.03 608 698 185 135 205 150
4 1/0(1) 0.72 0.80 16*14 1.04 657 747 210 155 235 170
5 1/0(19) 0.75 0.83 16*14 1.06 667 725 235 170 235 170
6 2/0(19) 0.81 0.88 13*12 1.15 820 910 240 175 270 200
7 3/0(19) 0.86 0.93 16*12 1.20 939 1029 270 200 305 225
8 4/0(19) 0.91 0.99 13*10 1.30 1138 1238 310 230 650 260
9 250(37) 0.97 1.04 16*10 1.36 1302 1418 340 255 385 285
10 350(37) 1.07 1.17 20*10 1.49 1615 1793 405 300 455 340
1/3 Neutral
1 2(1) 0.66 0.73 6*14 0.97 467 528 155 135 165 130
2 2(7) 0.68 0.76 6*14 1.00 489 579 155 135 165 130
3 1(19) 0.72 0.80 6*14 1.03 527 617 175 155 190 150
4 1/0(1) 0.72 0.80 6*14 1.04 541 663 200 175 215 175
5 1/0(19) 0.76 0.84 6*14 1.07 572 662 200 175 215 175
6 2/0(19) 0.81 0.88 7*14 1.12 636 726 230 200 245 195
7 3/0(19) 0.86 0.93 9*14 1.17 722 889 260 230 280 225
8 4/0(19) 0.91 0.99 11*14 1.23 822 922 290 240 315 225
9 250(37) 0.97 1.04 13*14 1.28 918 1018 320 260 345 280
10 350(37) 1.07 1.17 18*14 1.41 1166 1315 380 320 415 345
11 500(37) 1.02 1.30 16*12 157 1513 1691 455 385 495 415
12 750(61) 1.39 1.49 15*10 1.87 2152 2402 555 470 600 510
13 1000(61) 1.54 1.68 18*(A) 2.06 2711 3059 645 550 685 585



Packing & Shipping:

Packing Material: Coil (for small size & short length), wooden drum, iron-wooden drum, steel drum.

Shipping: Loading port from Qingdao or Shanghai ,12-24 hours from factory to sea port.



Company Information:

10+ years experience of export business.

Flexible business model, rich customer groups.

Wide range of cable products, rich resources in local market.



Some Export Area:

Australia , Bangladesh, Canada, Chile, Cote D’ivoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Lraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal. Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda, Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay, Yemen, Zimbabwe, Zambia.



Our Services:

  1. Product consultation, analysis, design, production
  2. Provide industry information, Product Training, Assist Product Marketing
  3. Provide project support such as tender assistant, cooperate visit customers, FAT support.
  4. Complete quality system and docs available, faster lead time, good quality, Strong technical support, free samples.
  5. OEM service
  6. Other service customized by clients
