5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Insulation Material: | XLPE/PE | Voltage: | 10KV (6/10KV) |
---|---|---|---|
Application: | Underground | Conductor Material: | Copper |
Jacket: | PVC | Cores: | 3 Cores |
Conductor: | Copper | Sheath: | PVC |
Armour: | Steel Wire | Color: | Black/Red |
Certificate: | ISO9001/ISO14001 | Package: | Wooden Reel, Iron-wooden Reel, Steel Reel |
High Light: | XLPE Armoured MV Power Cable,Twisted MV Power Cable |
Product Description
Application:
The cable is used for public power distribution network 1~35KV.
Applicable Standard:
NFC C33226, IEC60228, IEC60502-2
Cable Characteristics:
Rated Voltage: 1KV to 35KV
Cross-section area: up to 1000 .
Conductor long-time operating temperature: 90℃
Short circuit conductor highest temperature: 250℃

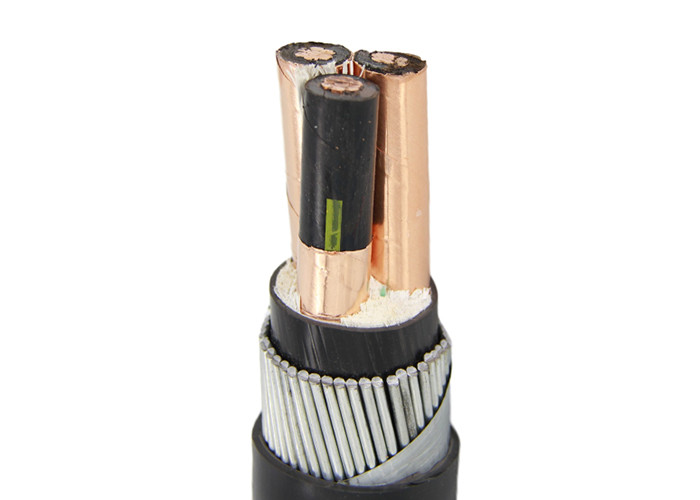

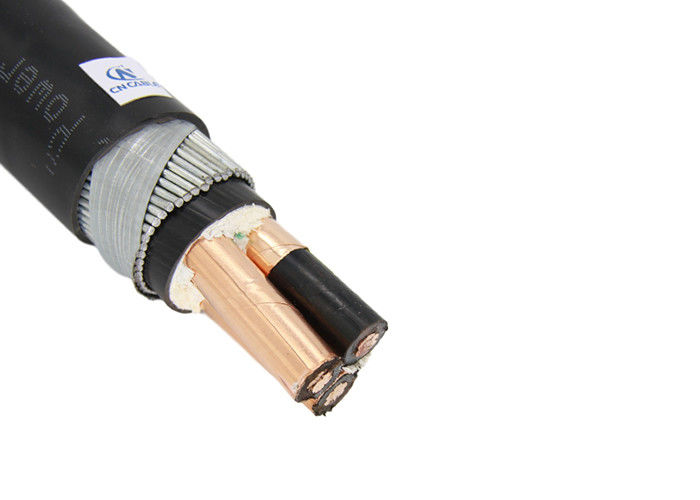

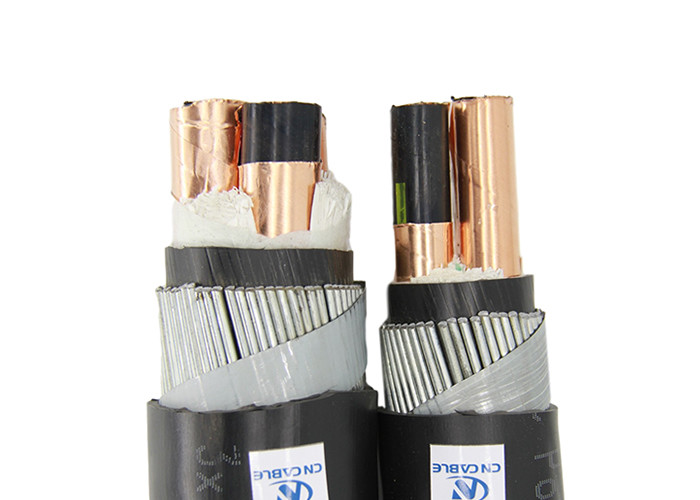

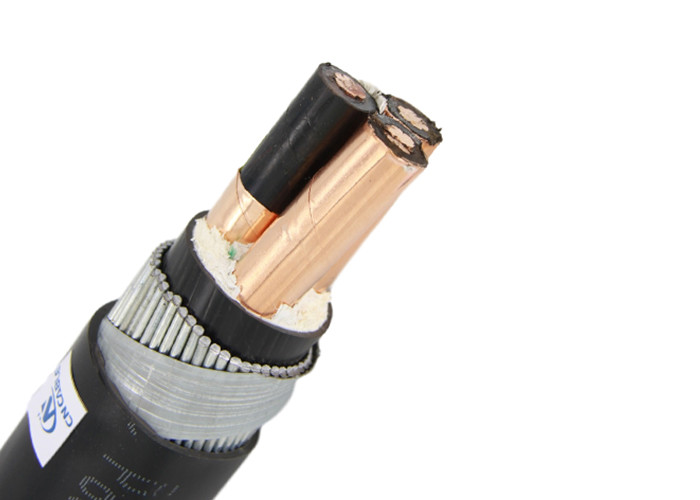

Cable Structure:
Core Number: 1 Core / 3 Core
Conductor: Copper/Aluminum
Insulation: XLPE / PE
Metallic screen: Copper tape / Copper wire screen / Al-Plastic Tape screen
Armor type: Aluminum tape/Aluminum wire/Steel wire
Outer sheath: PVC / PE / LDPE / LLDPE / LSHF
Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales
Product date sheet
10KV (6/10KV) Three Core ,Twisted Copper Underground Cable | ||||
Size | Insulation thickness | Outer Sheath Thickness | Approx. Cable Dia. | Approx. Cable Weight |
mm2 | mm | mm | mm | kg/km |
25 | 3.4 | 1.8 | 43.7 | 1117 |
35 | 3.4 | 1.8 | 45.9 | 1270 |
50 | 3.4 | 1.8 | 48.5 | 1480 |
70 | 3.4 | 1.8 | 52.1 | 1761 |
95 | 3.4 | 1.8 | 55.8 | 2087 |
120 | 3.4 | 1.8 | 58.8 | 2392 |
150 | 3.4 | 1.8 | 61.8 | 2735 |
185 | 3.4 | 1.9 | 66.1 | 3171 |
240 | 3.4 | 2 | 71.7 | 3826 |
300 | 3.4 | 2 | 76.5 | 4484 |
CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.
The company has passed Quality Management System ISO 9001:2015 and ISO 14001:2015, owned CE certificate and IEC certificate, etc. Advanced production technology and production equipments are also adopted .Some advanced producing and testing equipments are imported from Switzerland, Finland, Germany, the United States and other countries. For example, CCV cross-linked production line from Finland, and VCV cross-linked production line from German Troester, etc.
There are more than 300 workers in the factory; most of them have rich experiences in the field of cable manufacturing, engineering technology, and enterprise management. More than 40 persons are of senior professional and technical personnel, who are the upgraded technology experts and academic technology leaders. Design and production of all of our products are strictly according to the relative standards, such as ASTM, Australian standard, BS, CSA, CCITT, DIN,GB, IEC, JIS, NFC, UL, etc. Our products have been exported to more than 80 countries and regions. Such as Australia, Bangladesh, Brazil, Canada, Chile, Congo, Dominican, Ghana, Indonesia, Iran, Kenya, Nigeria, Peru, Philippines, Rwanda, Saudi Arab, South Africa, Sudan, Togo, Uganda, US, UK, Zambia.
